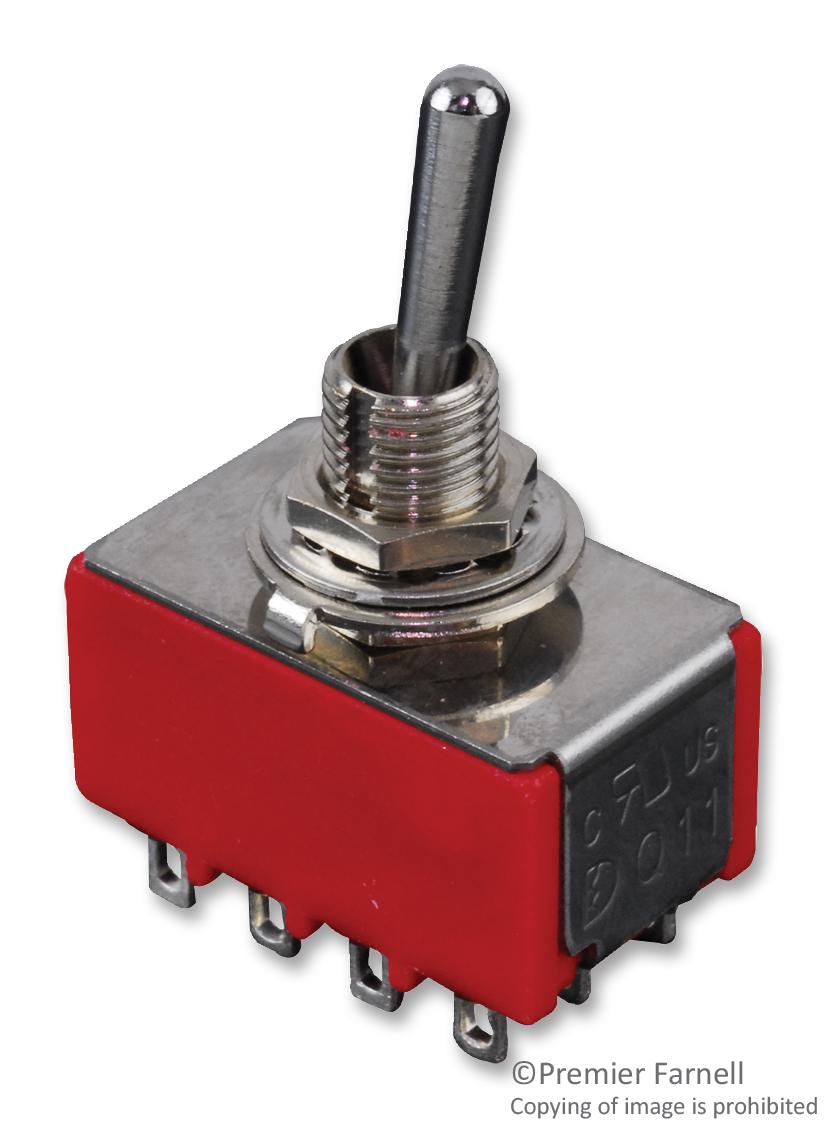

MULTICOMP PRO 1M41T1B1M1QE 4PDT Toggle Switch
The MULTICOMP PRO 1M41T1B1M1QE is a miniature 4-pole, double-throw (4PDT) toggle switch engineered for reliable performance in a wide range of industrial and commercial applications. This switch boasts a mechanical life of 40,000 make-and-break cycles, ensuring durability and longevity. It features various switch functions, including ON-NONE-ON, ON-OFF-ON, and momentary (MOM) configurations, providing flexibility in circuit design. The switch's construction incorporates high-quality materials such as diallyl phthalate (DAP) for the case, brass with chrome plating for the actuator, and stainless steel for the housing, ensuring resistance to wear and environmental factors. Available with a range of bushing options and termination styles, the 1M41T1B1M1QE is designed for easy integration into diverse systems, from control panels to automated machinery. Its compact size and robust design make it an ideal choice for applications requiring reliable switching functionality.
MULTICOMP PRO 1M41T1B1M1QE 4PDT Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1M41T1B1M1QE MULTICOMP PRO 4PDT Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1M41T1B1M1QE 4PDT Toggle Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1M41T1B1M1QE?
You can click on the BUY or RFQ button to purchase 1M41T1B1M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1M41T1B1M1QE?
You can download the 1M41T1B1M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1M41T1B1M1QE?
MULTICOMP PRO
