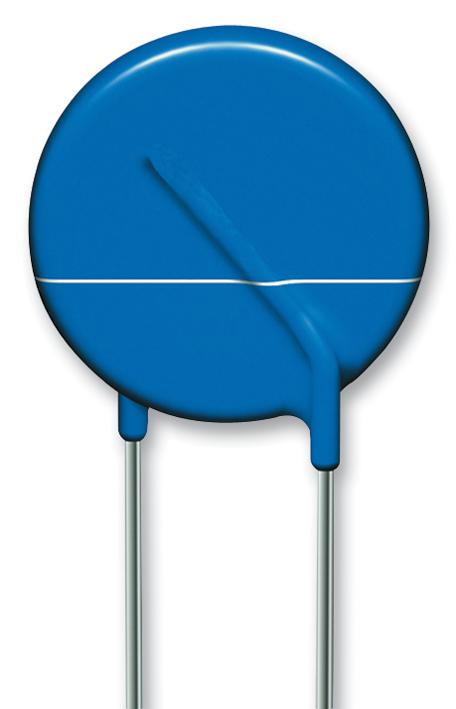

MULTICOMP PRO MCSR431K10DS Metal Oxide Varistor
The MCSR431K10DS is a high-performance metal oxide varistor designed for surge protection in electronic and industrial systems. It features excellent clamping characteristics, fast response time, and low standby power dissipation. Suitable for protecting consumer electronics, communication equipment, and power devices against lightning-induced surges and switching transients. Its robust construction ensures high surge current withstand capability, making it ideal for reliable overvoltage protection in demanding environments, ensuring safety and system integrity with consistent performance over wide temperature ranges.
MULTICOMP PRO MCSR431K10DS Metal Oxide Varistor Specifications:
- Maximum Voltage: 430V DC
- Varistor Voltage at 1mA: 350V
- Peak Surge Current: 20,000A (8/20 μs waveform)
- Maximum Clamping Voltage: 595V
- Energy Handling Capacity: 70 Joules
- Capacitance at 1kHz: 30pF
- Storage Temperature: -55°C to +125°C
- Operating Temperature Range: -55°C to +85°C
- Response Time: Less than 15 Nano-seconds
- DC Leakage Current: 200 μA maximum
- Materials: UL 94V-0 epoxy resin
- Dimensions: D=24mm maximum, Lead Diameter=0.8mm, Lead Protrusion=1.0mm
- Lead Length: Minimum 20mm, standard Lead-to-Lead Distance: 7.5mm
Buy the Premier Farnell 431K10DS – Reliable Surge Protector for Industrial Applications
Get the Premier Farnell 431K10DS metal oxide varistor today for superior surge protection in electronic and industrial systems. Its high surge current capacity, fast response time, and excellent clamping make it ideal for safeguarding sensitive components from lightning and switching surges. Designed for durability and reliability, this varistor ensures continuous protection with low standby power dissipation. Easy to install, compact, and capable of withstanding wide temperature ranges, it’s the perfect choice for manufacturers and engineers aiming for reliable overvoltage mitigation in demanding environments.
Buy Premier Farnell 431K10DS now and experience unmatched reliability and performance for protecting electronic devices against voltage surges.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSR431K10DS?
You can click on the BUY or RFQ button to purchase MCSR431K10DS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSR431K10DS?
You can download the MCSR431K10DS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSR431K10DS?
MULTICOMP PRO
