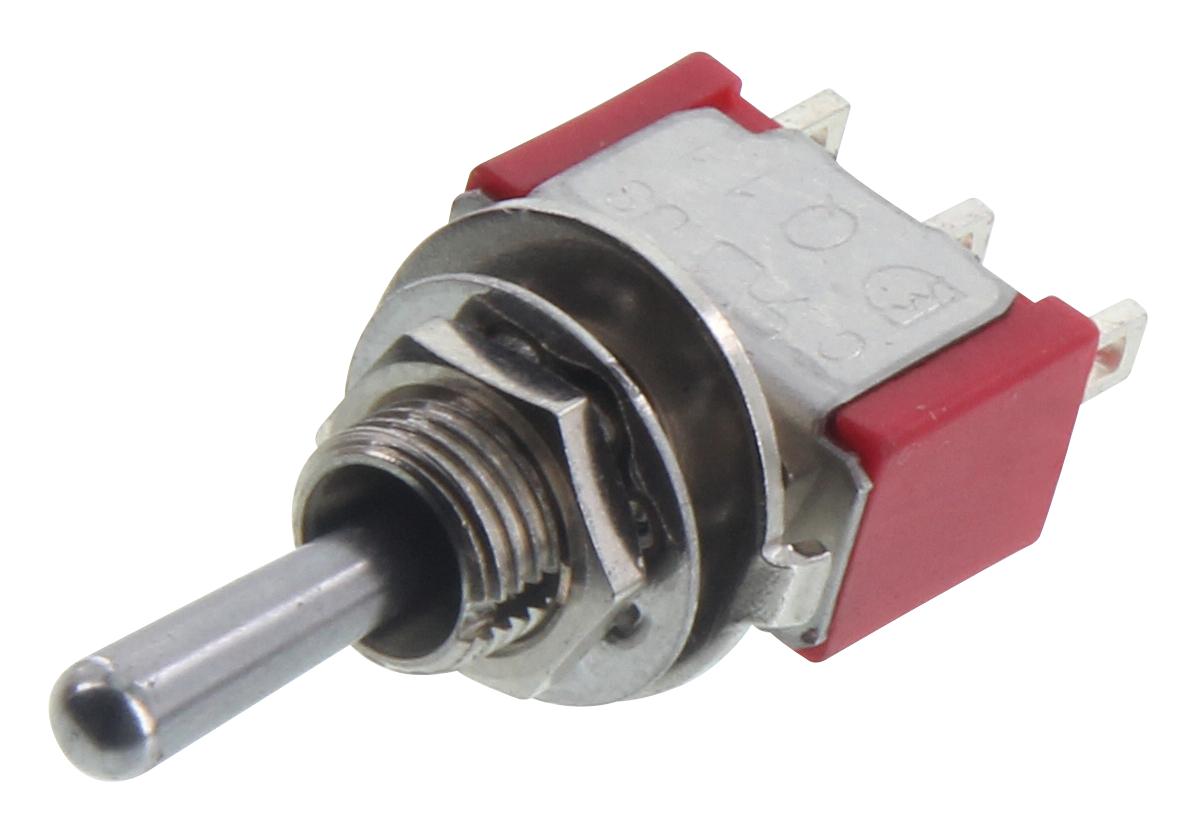

MULTICOMP PRO 1MS4T1B1M1QE SPDT Toggle Switch
The MULTICOMP PRO 1MS4T1B1M1QE is a SPDT (Single Pole Double Throw) toggle switch designed for reliable performance in industrial environments. It incorporates epoxy sealed terminations to protect against moisture and contaminants, ensuring long-term operational stability. The switch's construction utilizes durable materials like diallyl phthalate (DAP), brass, and stainless steel, with lever options available in various lengths. It's suitable for applications requiring robust switching capabilities and is ideal for control panels, machinery, and other industrial equipment.
MULTICOMP PRO 1MS4T1B1M1QE SPDT Toggle Switch Specifications:
- Electrical Life: 40,000 make-and-break cycles at full load
- Contact Resistance Initial: 10mΩ max. at 2 - 4V DC
- Contact Resistance Minimum: 1,000MΩ min.
- Current Rating Silver/Gold: 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V RMS at sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, Chrome plated
- Bushing Material: Brass, Nickel plated
- Housing Material: Stainless Steel
- Terminal/Contact Material: Silver or gold plated
- Voltage Rating: 20V maximum (AC or DC)
- Current Rating 1: 2A at 250V AC
- Current Rating 2: 5A at 120V AC or 28V DC
- VA Rating: 0.4 Volt-Amps (VA) maximum at 20V maximum (AC or DC)
