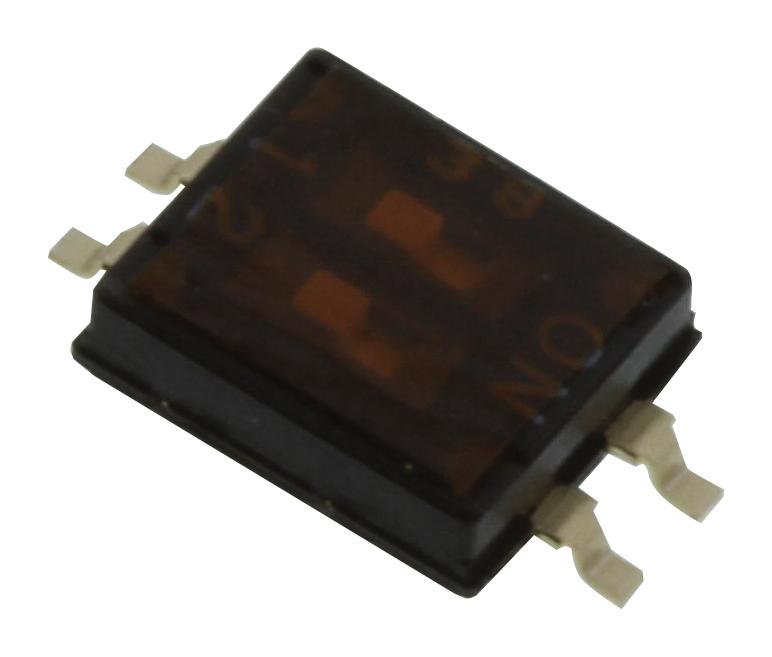

MULTICOMP PRO MCDHN02FTV Half-Pitch DIP Switch
The Multicomp Pro MCDHN series DIP switches are designed with a half-pitch, top tape sealed configuration. These switches feature SPST contact configuration and are available in 2, 4, 6, 8, and 10-position options. Each switch has a switching capacity of 25mA at 24VDC, with an operating force of 500gf, and utilizes a slide actuator style. Suitable for industrial applications, power management, automation, and process control, these DIP switches are rated highly with a 4.6 out of 5-star rating and come with a 12-month limited warranty. Most customers would recommend these switches to others.
MULTICOMP PRO MCDHN02FTV Half-Pitch DIP Switch Specifications:
- Contact Arrangement: SPST
- Number of Poles: 2, 4, 6, 8, 10
- Contact Rating: 25mA, 24VDC
- Contact Resistance: Max. 100mΩ
- Insulation Resistance: Min. 100MΩ at 500V DC
- Dielectric Strength: 300V AC for 1 minute
- Operating Force: 500gf max.
- Travel: 0.6mm
- Operating Life: 1,000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Length varies with model, typical width 3.7mm, height 4.6mm
- Material: Polycarbonate housing, metal slide actuator
- Color: Black/White
- Mounting: SMD
- Sealed top tape for washing process
Buy the Multicomp Reliable MCDHN Series DIP Switch for Industrial Applications
Upgrade your automation and power management projects with the durable and reliable half-pitch DIP switches from the Multicomp Pro MCDHN series. Featuring SPST contact configuration, 2 to 10 poles, and sealed top tape for washing, these switches deliver consistent performance with 25mA at 24VDC ratings. Designed for industrial applications, they support high durability with a 1,000-cycle life and operate efficiently from -40°C to +85°C. Easy to mount with SMD design, they are your go-to solution for control systems, automation setups, and process management.
Buy Multicomp MCDHN02FTV now and experience reliable switching performance in automation and power management systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDHN02FTV?
You can click on the BUY or RFQ button to purchase MCDHN02FTV from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDHN02FTV?
You can download the MCDHN02FTV datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDHN02FTV?
MULTICOMP PRO
