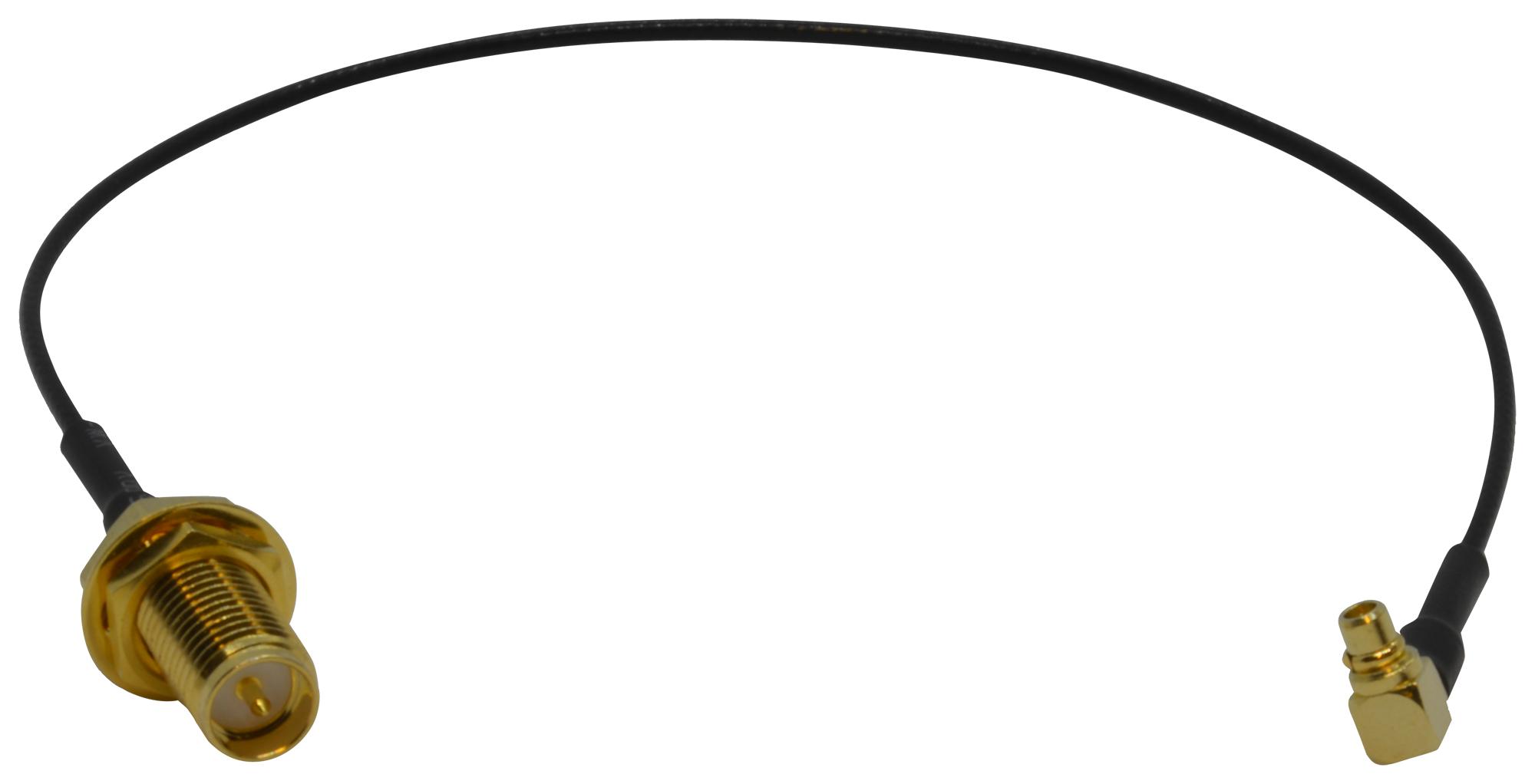

MULTICOMP PRO MC001902 RF Coaxial Cable Assembly
The MC001902 is a 200mm RF coaxial cable assembly that features a right-angled MMCX connector and an RPSMA panel connector, ideal for RF communication. It uses a low-loss 1.37mm cable with a 50Ω impedance, suitable for outdoor and indoor applications. Operating from DC to 6 GHz, it supports a maximum voltage of 170 Vrms and dielectric withstand voltage of 750 Vrms. The insulator resistance exceeds 1000 MΩ, with a maximum VSWR of 1.65:1 and insertion loss of -1.5 dB. The black sheath ensures durability across temperatures from -20°C to +70°C.
MULTICOMP PRO MC001902 RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6 GHz
- Working Voltage: 170 Vrms Max.
- Dielectric Withstanding Voltage: 750 Vrms
- Insulator Resistance: >1000 MΩ
- VSWR: 1.65:1 Max.
- Insertion Loss: -1.5 dB Max.
- Cable Diameter: 1.37mm
- Connector Type: MMCX Right Angle, RPSMA Bulkhead Jack
- Cable Length: 200mm
- Temperature Range: -20°C to +70°C
- Sheath Color: Black
Buy the Multicomp 2779965 – Reliable RF Coaxial Cable Assembly for Industrial Applications
Enhance your RF communication setup with this 200mm coaxial cable assembly featuring MMCX and RPSMA connectors. Designed for outdoor and indoor use, it operates from DC to 6 GHz, supporting high voltages and low insertion loss. Its durable black sheath withstands extreme temperatures, ensuring long-term performance. Ideal for antennas, test equipment, or wireless communication devices, this assembly provides excellent signal integrity with a VSWR of just 1.65:1. Order now to ensure reliable connections in demanding environments.
Buy Multicomp 2779965 now and experience unmatched reliability and performance in RF communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001902?
You can click on the BUY or RFQ button to purchase MC001902 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001902?
You can download the MC001902 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001902?
MULTICOMP PRO
