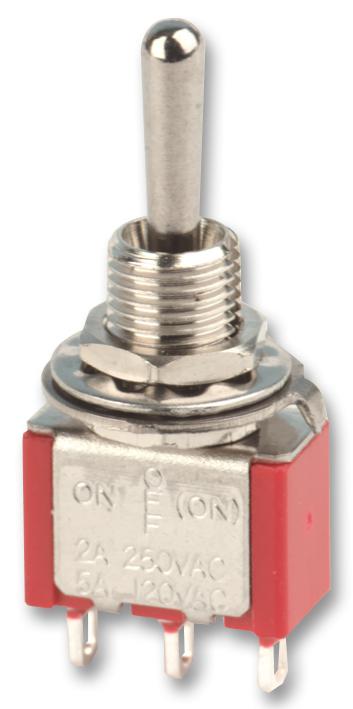

MULTICOMP PRO 1MS4T1B1M1RE SPDT Toggle Switch
The MULTICOMP PRO 1MS4T1B1M1RE is a miniature SPDT toggle switch designed for PCB applications. Constructed with durable materials like diallyl phthalate (DAP), brass, and stainless steel, this switch offers reliable performance in various industrial environments. It boasts a mechanical life of 40,000 cycles and a low contact resistance of 10mΩ, ensuring efficient signal transmission. The switch is RoHS compliant and suitable for applications requiring a compact and dependable switching solution.
MULTICOMP PRO 1MS4T1B1M1RE SPDT Toggle Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
Buy the 1MS4T1B1M1RE MULTICOMP PRO SPDT Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1MS4T1B1M1RE SPDT Toggle Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MS4T1B1M1RE?
You can click on the BUY or RFQ button to purchase 1MS4T1B1M1RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MS4T1B1M1RE?
You can download the 1MS4T1B1M1RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MS4T1B1M1RE?
MULTICOMP PRO
