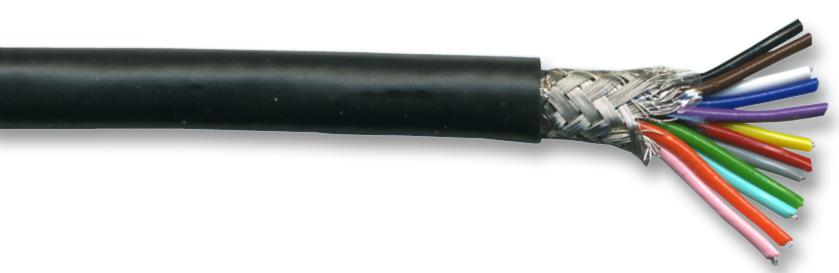

MULTICOMP PRO PP000359 Screened Multicore Cable
This screened multicore cable complies with Defence Standard 61-12 Part 5 and is designed for high density wiring in electronic equipment and components. It features electrolytic annealed tinned copper conductors, PVC insulation, and a braid screen for electromagnetic interference protection. Suitable for use within instruments, it withstands temperature ranges from 10°C to +70°C, with a maximum voltage of 440V AC. Its construction includes color-coded cores, a black and grey PVC outer jacket, and a minimum bending radius of 6 times the cable diameter, making it ideal for precise, reliable electronic wiring.
MULTICOMP PRO PP000359 Screened Multicore Cable Specifications:
- Conductor Material: Electrolytic Annealed Tinned Copper
- Conductors: 16/0.2mm (16 strands of 0.2mm each)
- Core Resistance @ 20°C: 40.10/km
- Core Insulation: PVC to BS676, Radial Thickness 0.45mm
- Insulation Resistance: Min. 200MO/km
- Outer Diameter: 1.83mm
- Shielding: Braid, 0.2mm, 70% fill factor
- Outer Sheath: Black and Grey PVC (RAL 7001)
- Voltage Rating: 440V AC rms @ 1600Hz
- Temperature Range: 10°C to +70°C
- Minimum Bending Radius: 6 x cable diameter
- Test Voltage: 2000V (core to core, 1 min)
Buy the Buy Multicomp Screened Multicore Cable to Defence Standard 61-12 Part 5 16-2- C Online
Purchase the premium multicore screened cable designed for high-density wiring in electronic devices. Featuring tinned copper conductors, PVC insulation, braid shielding, and a rugged PVC outer jacket, it ensures reliable performance and EMI protection. Suitable for applications demanding precise wiring with a temperature range from 10°C to 70°C and a maximum voltage of 440V. Available in various lengths, this cable supports secure, durable connections in sensitive electronic environments. Buy online today and ensure optimal wiring performance in your electronic projects.
Get Multicomp PP000359 today—built for high-density electronic wiring with excellent shielding and temperature stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000359?
You can click on the BUY or RFQ button to purchase PP000359 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000359?
You can download the PP000359 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000359?
MULTICOMP PRO
