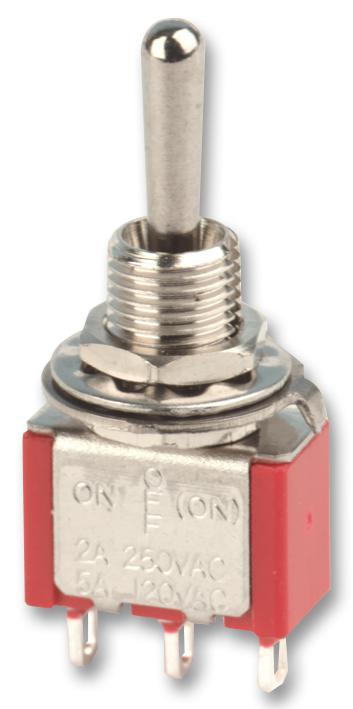

MULTICOMP PRO 1MS5T1B1M1QE SPDT Toggle Switch
The MULTICOMP PRO 1MS5T1B1M1QE is a miniature SPDT (Single Pole Double Throw) toggle switch designed for PCB (Printed Circuit Board) mounting. Constructed with high-quality materials like diallyl phthalate (DAP) for the case, brass with chrome plating for the actuator, and stainless steel for the housing, this switch offers excellent durability and reliability. It's ideal for applications requiring a compact and robust switching solution, commonly found in industrial control panels, automation equipment, and consumer electronics. The switch boasts a mechanical life of 40,000 cycles and a contact resistance of 10mΩ, ensuring consistent performance over time. Its operating temperature range of -30°C to +85°C makes it suitable for a wide range of environmental conditions.
MULTICOMP PRO 1MS5T1B1M1QE SPDT Toggle Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
