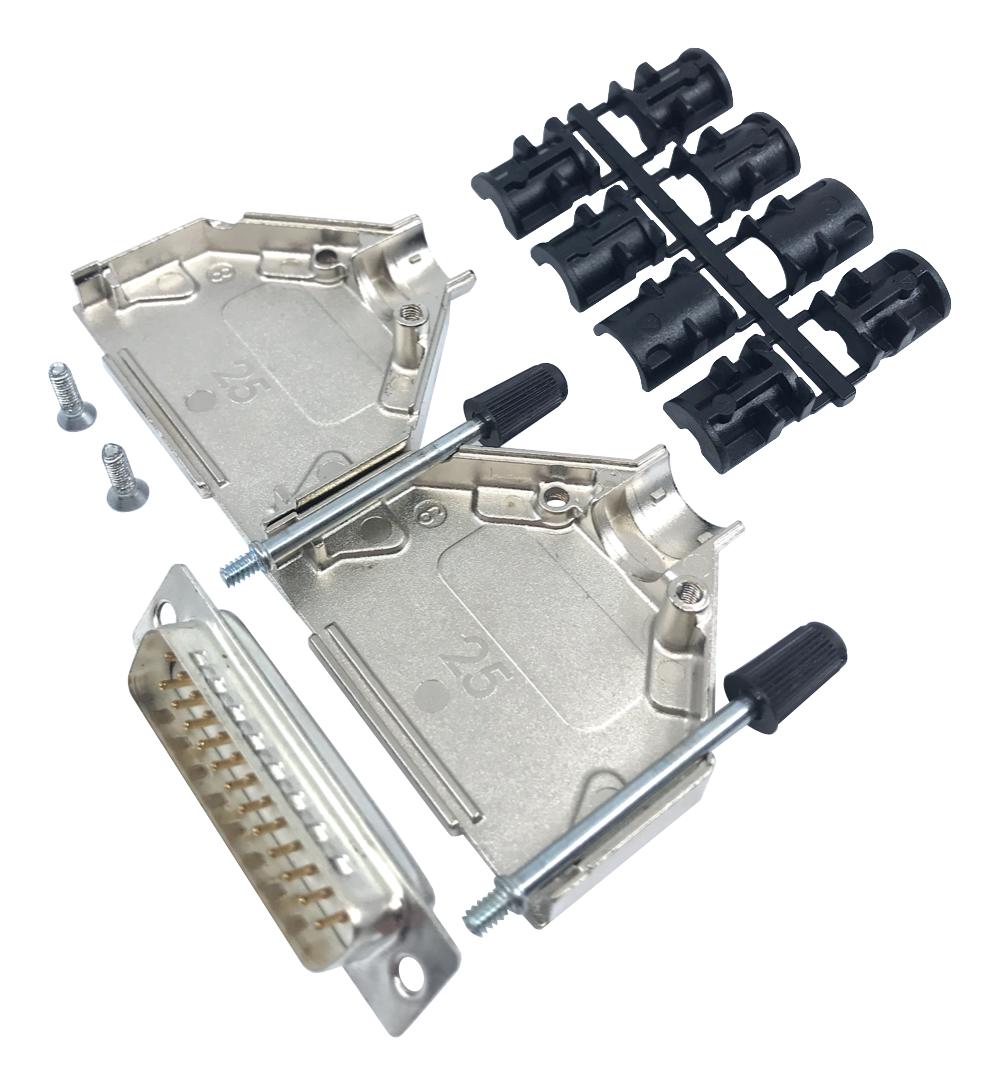

MULTICOMP-PRO MP002025 D-Sub Connector with Backshell
This high-quality D-Sub connector with backshell offers excellent electromagnetic interference reduction and reliable shielding. Suitable for various cable types, it features long jackscrews with UNC 4-40 thread, straight cable outlet, and is approved according to VDE 0871 and FCC 20780 standards. Made with zinc, nickel-plated material, it operates within -55°C to +105°C temperature range. Its copper alloy contact pins are selectively gold-plated over nickel, ensuring durability and excellent conductivity. The assembly is tool-free, with stamped contacts rated for 1000MO insulator resistance and 2.1kV withstand voltage for 1 min.
MULTICOMP-PRO MP002025 D-Sub Connector with Backshell Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -40°C to 120°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: <17mm
- Locking Screws: Long jackscrews UNC 4-40, Black
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Selective Gold over Nickel
- Insulator Resistance: > 1000MO
- Withstand Voltage: 2.1kV for 1 min
Buy the Multicomp Series D-Sub Connector with Backshell: MP002025
Enhance your electronic assemblies with the advanced D-Sub connector with backshell from Multicomp. Designed for reliable EMI shielding and easy installation, it features long jackscrews for secure attachment and accepts various cable types up to 17mm diameter. Made with zinc and copper alloy, it ensures durability, excellent conductivity, and temperature tolerance from -55°C to +105°C. Its tool-free assembly and RoHS compliance make it ideal for industrial, automation, and electronic projects requiring high-performance connectors and shielding efficiency.
Get Multicomp Series MP002025 today—built for precision, durability, and industrial reliability in electronic and cable connections.
