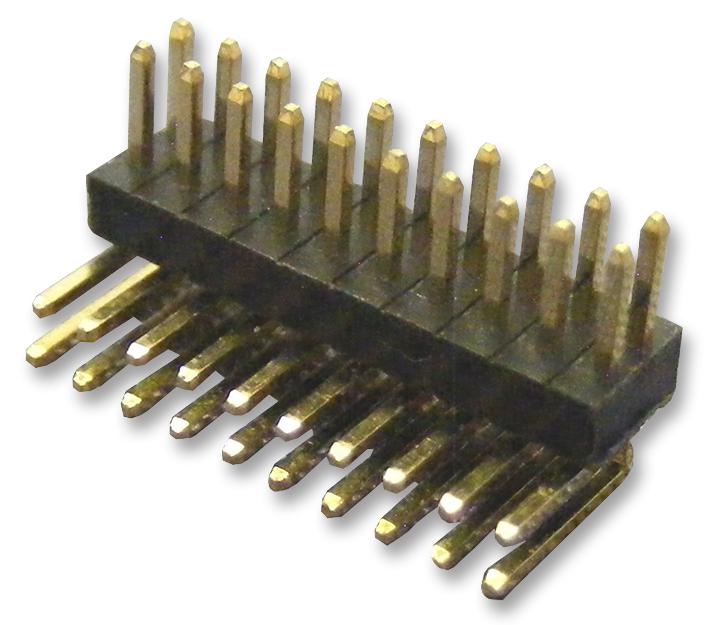

MULTICOMP PRO 2199R520G301523 PCB Header
This 2-row, right-angle, 20-way header from Multicomp Pro is designed for reliable PCB connections. Constructed from high-temperature nylon 6T with gold-plated copper contacts, it features a current rating of 1A, voltage rating of 50V AC/DC, and withstands 500V for one minute. The header exhibits a contact resistance of 20mΩ, insulation resistance of 1,000MΩ, and operates within a temperature range of -25°C to +105°C. Its dimensions are approximately 3.40 mm, with a contact pitch of 1.27 mm for secure electrical contact.
MULTICOMP PRO 2199R520G301523 PCB Header Specifications:
- Current Rating: 1A
- Voltage Rating: 50V AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 500V for one minute
- Operating Temperature: -25°C to +105°C
- Material: High-temperature plastic (Nylon 6T)
- Contact Plating: Gold
- Contact Material: Copper alloy
- Dimensions: approximately 3.40 mm length, contact pitch 1.27 mm
- Number of Positions: 20
- Insulator Color: Black
Buy the Multicomp Pro 2199R520G301523 – Reliable PCB Connectors for Industrial Applications
Discover the durability and reliability of the Multicomp Pro 2-row, 20-way PCB header with gold-plated contacts and high-temperature nylon. Perfect for industrial, automation, and electronics applications, this header offers excellent electrical performance, a current rating of 1A, and withstands voltages up to 50V AC/DC. Its dimensions and contact pitch ensure a secure connection, while the black insulator provides durability. Purchase online today and enhance your project’s electrical connectivity with trusted, high-quality components designed for demanding environments.
Order your Multicomp Pro 2199R520G301523 2-Row R/Angle 20-Way Header today and ensure dependable PCB connections for your electronics projects.
