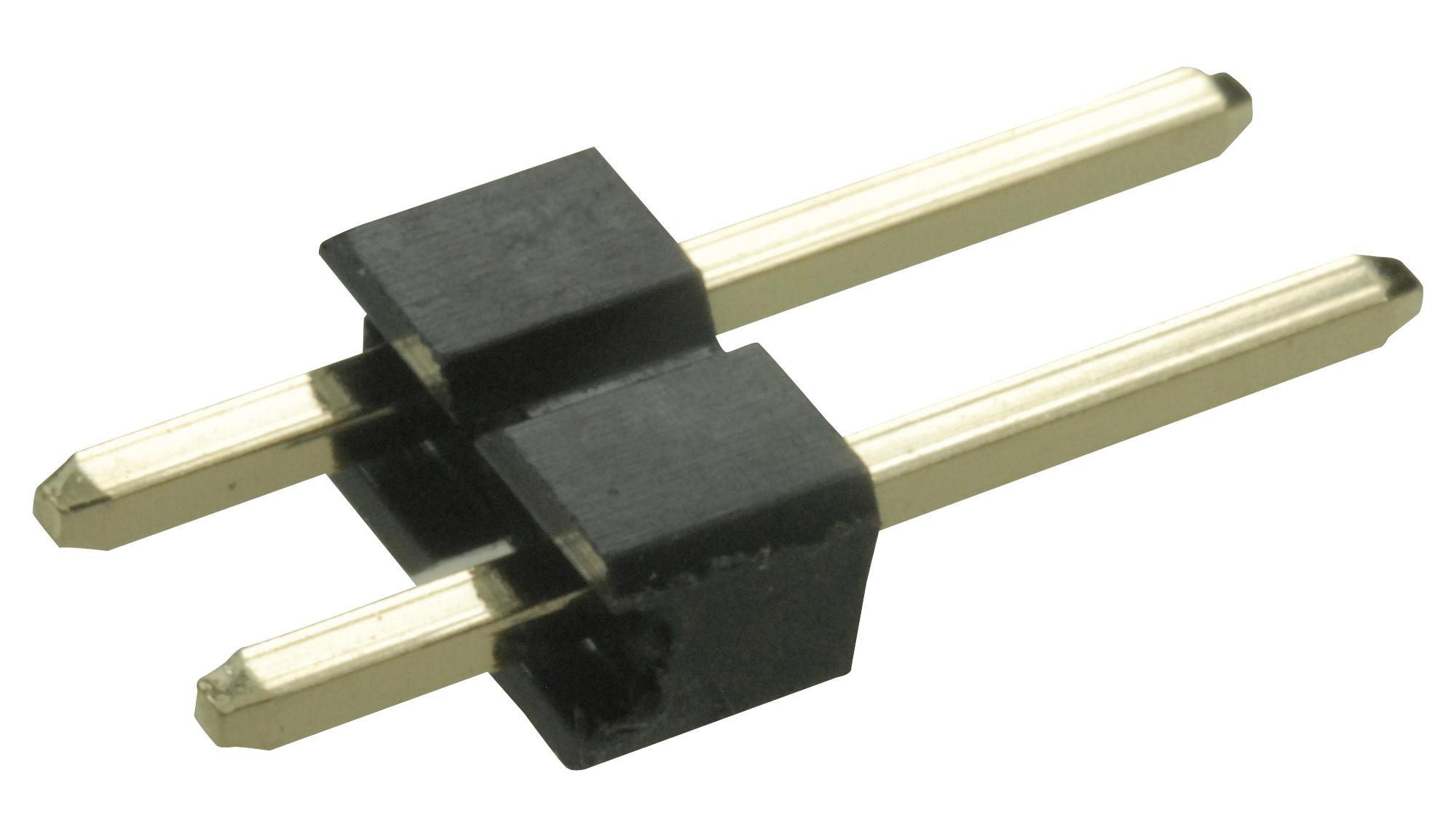

MULTICOMP PRO 2211S02G Single-row PCB Header
The 2211S series from Multicomp Pro offers 2.54mm pitch, single-row PCB headers ideal for vertical mounting in industrial and electronic projects. Constructed with durable copper alloy contacts plated with gold, these headers provide reliable electrical connections. They are rated for 3A current and 250VAC/DC voltage, operate from -40°C to 105°C, and feature a maximum contact resistance of 20 milliohms and a minimum insulation resistance of 1000 megaohms. Available in configurations from 2 to 24 pins, they ensure robust performance and long-term stability for various PCB applications.
MULTICOMP PRO 2211S02G Single-row PCB Header Specifications:
- Current Rating: 3A
- Voltage Rating: 250VAC/DC
- Max. Contact Resistance: 20 milliohms
- Min. Insulation Resistance: 1000 megaohms
- Withstanding Voltage: 600 V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material and Finish: Copper alloy contacts, gold plated
- Insulator Material: High temperature plastic (PBT)
- Insulator Colour: Black
- Contact Material: Copper alloy
- Dimensions: 2.54 mm pitch, contact positions from 2 to 24, contact length approx. 40.1 mm, insulator size varies with number of contacts
- Contact Plating: Gold
- Number of Positions: 2, 3, 4, 5, 6, 8, 10, 12, 14, 18, 20, 22, 24
Buy the Buy Multicomp PCB Through Hole Header Part Number 2211S02G Online
Enhance your electronic projects with the high-quality Multicomp PCB Through Hole Header. Featuring 2.54mm pitch, gold-plated contacts, and a temperature range of -40°C to 105°C, these headers provide secure, reliable connections essential for industrial and electronic applications. Available in various pin counts from 2 to 24, they are perfect for vertical mounting on PCBs. Trusted for durability and performance, purchase online today to ensure your circuit's stability and long-term success.
Buy Multicomp PCB Through Hole Header Part Number 2211S02G now and experience reliable, high-quality electrical connections for your PCB assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2211S02G?
You can click on the BUY or RFQ button to purchase 2211S02G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2211S02G?
You can download the 2211S02G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2211S02G?
MULTICOMP PRO
