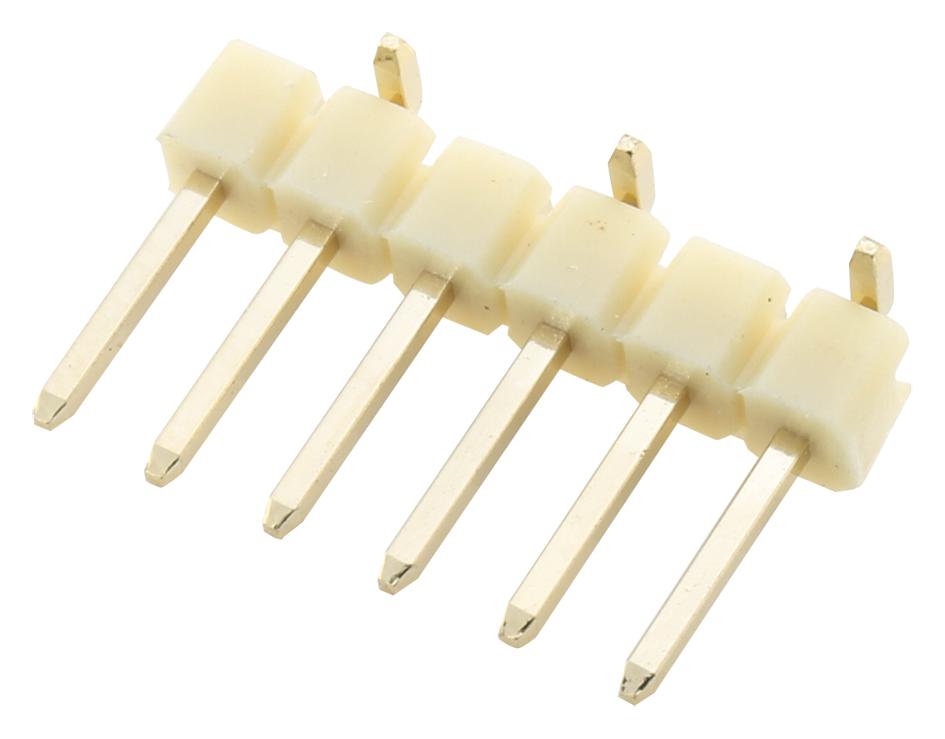

MULTICOMP PRO 2211SM06GB1TB Vertical SMD Header
This 2.54mm pitch vertical single-row SMD header features staggered pins with a 3-post configuration, ideal for compact PCB connections. Constructed with high-temp plastic (Nylon 6T UL94V-0) and gold-plated copper alloy contacts, it offers reliable electrical performance with a current rating of 3A and voltage rating of 250V. Its operating temperature range is -40°C to +105°C, ensuring durability in various environments. Suitable for automated assembly, it provides excellent contact resistance of 20mΩ max and insulation resistance of 1000MΩ min, making it a perfect choice for electronics projects requiring stable and secure connections.
MULTICOMP PRO 2211SM06GB1TB Vertical SMD Header Specifications:
- Pitch: 2.54mm
- Configuration: Single row, vertical, SMD, staggered pins
- Number of positions: 3 to 24
- Current Rating: 3A
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: Copper alloy contacts, high-temp plastic insulator
- Insulator Colour: Ivory
- Contact Plating: Gold
- Design: 1 row, staggered, SMT package
- RoHS compliant
Buy the Buy Multicomp Series2211SM06GB1TB Part Number 2211SM06GB1TB Online
Purchase your vertical SMD header with 2.54mm pitch, staggered pins, and gold-plated contacts from trusted online suppliers. Designed for efficient PCB assembly, this high-quality connector ensures stable electrical performance with a current rating of 3A and voltage rating of 250V. Its high-temperature nylon insulator withstands temperatures up to +105°C, making it suitable for various applications. Easy to mount on PCB, it features excellent contact resistance, insulation resistance, and RoHS compliance. Order now for fast delivery and enhance your electronic assembly with dependable connectors.
Order your Multicomp Series2211SM06GB1TB today and secure reliable, easy-to-automate connections for your electronic projects.
