MULTICOMP PRO GBPC2502W Bridge Rectifier
The GBPC2502W is a 25A, 200V bridge rectifier designed for efficient conversion of AC to DC in power supply applications. Constructed with plastic material and an integrally molded heatsink, it offers excellent heat dissipation and low thermal resistance. This single-phase, half-wave rectifier features surge overload ratings up to 400A and a maximum repetitive peak reverse voltage of 200V. It ensures high reliability with solderable terminals per MIL-STD-202, thermally stable operation from -50°C to +150°C, and low forward voltage drops. Ideal for applications requiring robust, compact, and high-performance rectification.
MULTICOMP PRO GBPC2502W Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 200V
- Maximum RMS Voltage: 140V
- Maximum DC Blocking Voltage: 200V
- Maximum Average Forward Rectified Current at 55°C: 25A
- Peak Forward Surge Current: 400A
- Forward Voltage Drop at 12.5A: 1.4V
- Maximum Instantaneous Forward Current: 25A
- Maximum Reverse Current at Rated Voltage: 5mA
- Thermal Resistance (Junction to Case): 1.5°C/W
- Operating and Storage Temperature Range: -50°C to +150°C
- Construction: Plastic material with integrally molded heatsink
- Terminal type: Solderable per MIL-STD-202, method 208
- Dimensions: 0.432 inches (11 mm) x 0.672 inches (17 mm) x 0.2 inches (5 mm)
- Hole for #10 screw: 0.22 inches (5.59 mm)

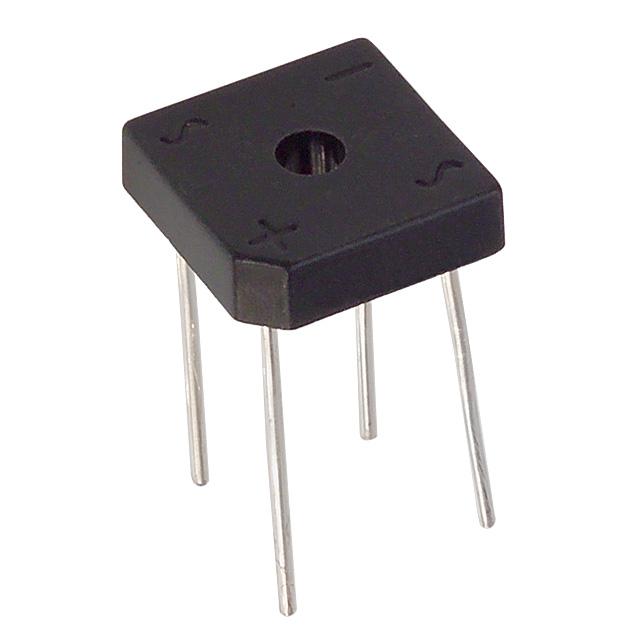

Buy the Multicomp Series GBPC Bridge Rectifier: GBPC2502W
Upgrade your power supply with the GBPC2502W bridge rectifier from Multicomp. This 25A, 200V device provides efficient AC to DC conversion with robust surge overload ratings of up to 400A. Its plastic construction and integrated heatsink ensure excellent heat dissipation and durability in demanding applications. Designed for single-phase power circuits, it features low forward voltage drop, low reverse current, and reliable solderable terminals. Perfect for industrial, commercial, and electronic equipment requiring high-performance rectification, compact design, and thermal stability across a wide temperature range.
Buy Multicomp GBPC2502W now and experience unmatched reliability and performance in power rectification with high surge capacity and thermal stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC2502W?
You can click on the BUY or RFQ button to purchase GBPC2502W from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC2502W?
You can download the GBPC2502W datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC2502W?
MULTICOMP PRO
