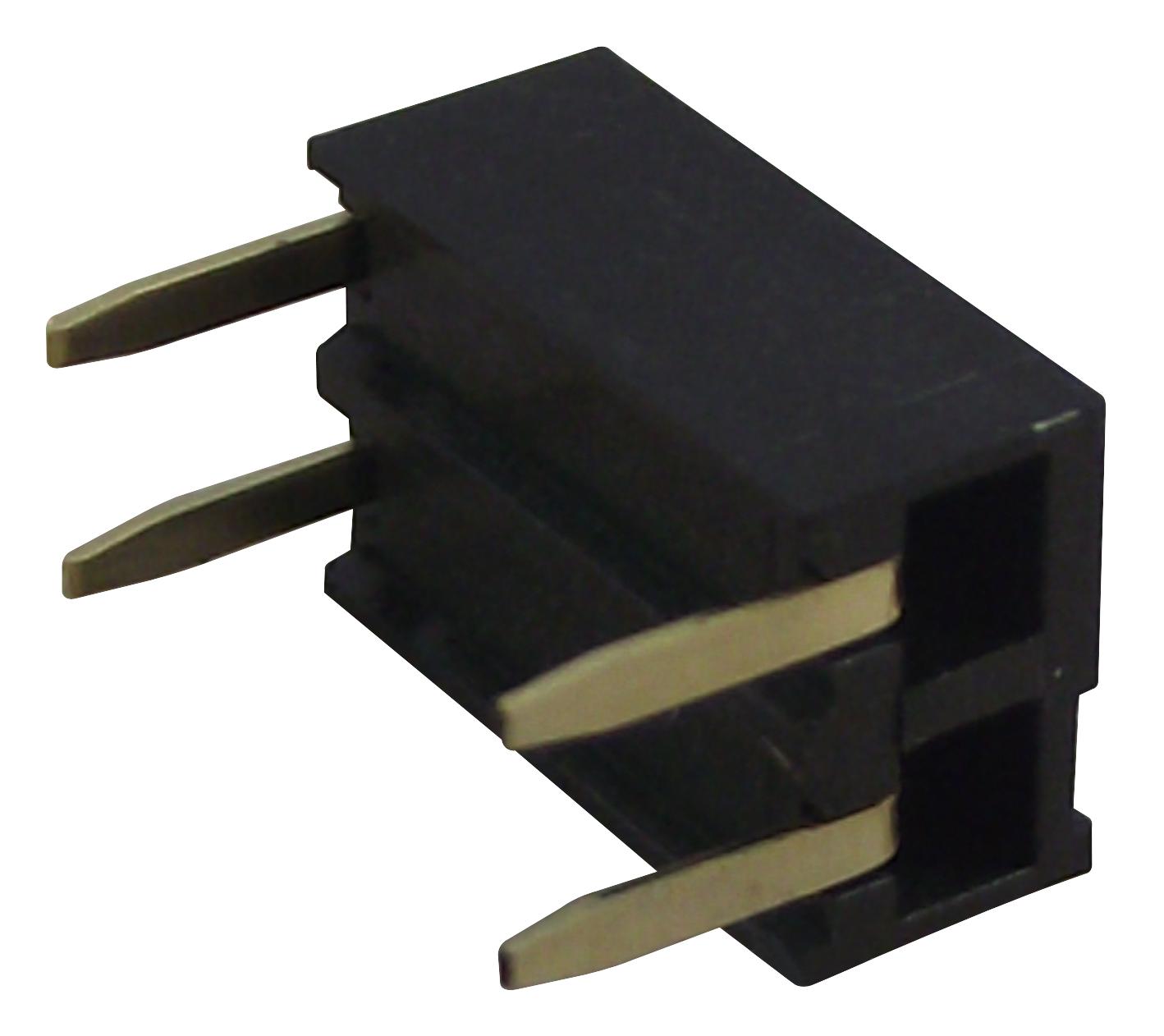

MULTICOMP-PRO 2212BR02G PCB Socket Connector
This 2.54mm pitch PCB socket socket provides reliable horizontal 2-way connection for various electronic assemblies in industries such as automation, automotive, and consumer electronics. Constructed with phosphor bronze and gold plating, it offers excellent electrical conductivity and durability. The insulator is made of high-temperature nylon 6T material, rated for operation from -40°C to +105°C. It features max contact resistance of 20mΩ, insulation resistance of 1000MΩ, and withstands 600V AC for one minute. Suitable for ensuring secure, maintenance-friendly connections in complex electronic projects.
MULTICOMP-PRO 2212BR02G PCB Socket Connector Specifications:
- Pitch: 2.54mm
- Number of positions: 2 way
- Contact Resistance: 20mΩ
- Insulation Resistance: 1000MΩ
- Voltage Rating: 600V AC (for one minute)
- Current Rating: 3.0A
- Operating Temperature Range: -40°C to +105°C
- Material: Phosphor Bronze with Gold Plating
- Insulator Material: High-Temperature Nylon 6T
- Flammability Rating: UL 94V-0
- Max Contact Diameter: 20.15mm
- Max Mounting Hole Diameter: 2.54mm
- Dimensions: A: 7.62mm, B: 20.20mm, A with tolerance: 7.62+0.10mm
- RoHS Compliant: Yes
- Lead Time: Variable due to market demand
- Warranty: 12 months
Buy the Multicomp 2212BR02G – Reliable PCB Socket for Industrial Applications
Order the Multicomp PCB Socket 2-way 2.54mm pitch online now and benefit from easy installation, durable gold-plated contacts, and excellent electrical performance. Designed with high-quality materials rated for -40°C to +105°C, it ensures secure connections in diverse industrial and consumer electronic applications. Whether for automation, automotive, or PC peripherals, this socket features UL 94V-0 flammability rating and RoHS compliance for safety and environmental standards. Make your electronic assemblies more reliable and maintenance-efficient today.
Buy Multicomp 2212BR02G now and experience unmatched reliability and high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2212BR02G?
You can click on the BUY or RFQ button to purchase 2212BR02G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212BR02G?
You can download the 2212BR02G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2212BR02G?
MULTICOMP-PRO
