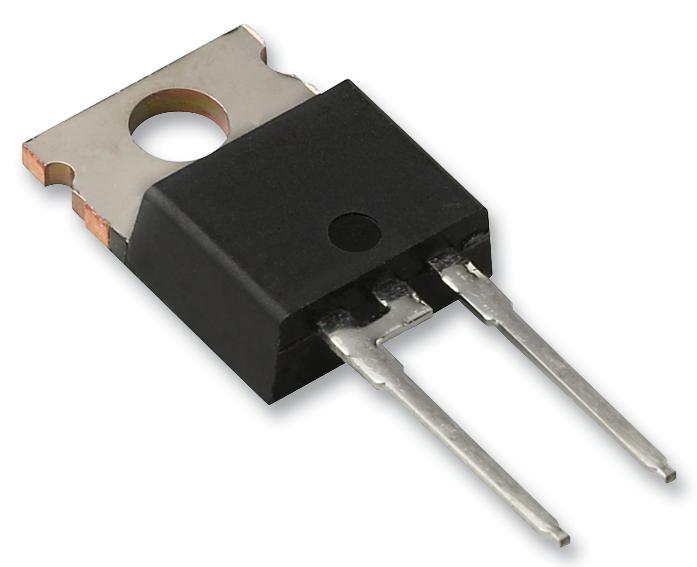

MULTICOMP PRO MBR845 Rectifier
This Schottky barrier rectifier features a silicon metal construction with a guard ring for transient protection, offering low power loss, high efficiency, and high surge capacity. Suitable for low voltage, high frequency inverters, and polarity protection applications, it has a TO-220AC molded plastic case, with a reverse voltage rating between 40 and 60 volts and a forward current of 8A. Its compact design ensures reliable operation in various electronic power systems, providing excellent temperature tolerance and electrical characteristics for industrial and consumer applications.
MULTICOMP PRO MBR845 Rectifier Specifications:
- Case: TO-220AC molded plastic
- Polarity: As marked
- Weight: 0.08 ounces, 2.24 grams
- Reverse Voltage: 40 to 60 Volts
- Forward Current: 8 Amperes
- Max. Recurrent Peak Reverse Voltage VRRM: 40-60 V
- Max. RMS Voltage Vems: 28-42 V
- Max. DC Blocking Voltage Voc: 40-60 V
- Typical Junction Capacitance: 250 pF
- Peak Forward Surge Current: 150 A (8.3 ms pulse)
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction to Case: 3°C/W
- Dimensions: Refer to official datasheet with inch/mm conversions
Buy the Buy multicomp Rectifier Part Number MBR845 Online
Purchase the multicomp series MBR845 rectifier online today for reliable low voltage, high efficiency power conversion. This Schottky barrier rectifier is ideal for inverter circuits, polarity protection, and high-frequency applications. With a TO-220AC package, 8A forward current, and 40-60V reverse voltage ratings, it delivers excellent electrical performance and thermal stability. Its compact design and surge handling make it suitable for various industrial and consumer electronic power systems. Order now for fast delivery and dependable performance in all your power management projects.
Order your multicomp series MBR845 rectifier today and ensure your power circuits operate with high efficiency, reliable surge capacity, and robust performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR845?
You can click on the BUY or RFQ button to purchase MBR845 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR845?
You can download the MBR845 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR845?
MULTICOMP PRO
