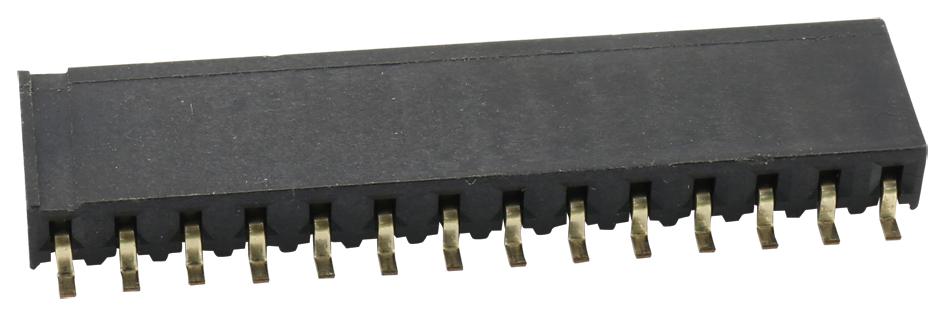

MULTICOMP PRO 2212BR12GSMTR PCB Socket
This 2.54mm pitch PCB socket is designed for horizontal entry, SMD mounting, and offers reliable electrical connections for various electronic applications. It features a high temperature plastic insulator with gold-plated copper contacts, rated for 3A current and 250V voltage, ensuring durability and stability in operational environments. Suitable for surface-mount technology, it accommodates multiple positions from 2 to 20, with precise dimensions and compliance with RoHS standards. Ideal for compact circuit designs requiring secure, easy-to-install connections with consistent performance.
MULTICOMP PRO 2212BR12GSMTR PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (LCP UL94V-0)
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- Dimensions vary from 5.08mm to 50.8mm depending on number of positions
- Position options: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 18, 20
Buy the Multicomp Series 2.54mm PCB Socket: 2212BR12GSMTR
Order the Multicomp Series 2.54mm PCB socket 2212BR12GSMTR online today for high-quality surface-mount connections designed for reliability and stability. This socket features a durable gold-plated contact system, high-temperature plastic insulator, and compliance with RoHS standards, making it ideal for various circuits requiring secure data, power, or signal connections. Available in multiple positions, it ensures consistent electrical performance in compact, demanding electronic assemblies. Purchase now for fast delivery and excellent technical support.
Buy Multicomp Series 2.54mm PCB socket 2212BR12GSMTR now and experience reliable surface-mount connections with high durability and easy installation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212BR12GSMTR?
You can click on the BUY or RFQ button to purchase 2212BR12GSMTR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212BR12GSMTR?
You can download the 2212BR12GSMTR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212BR12GSMTR?
MULTICOMP PRO
