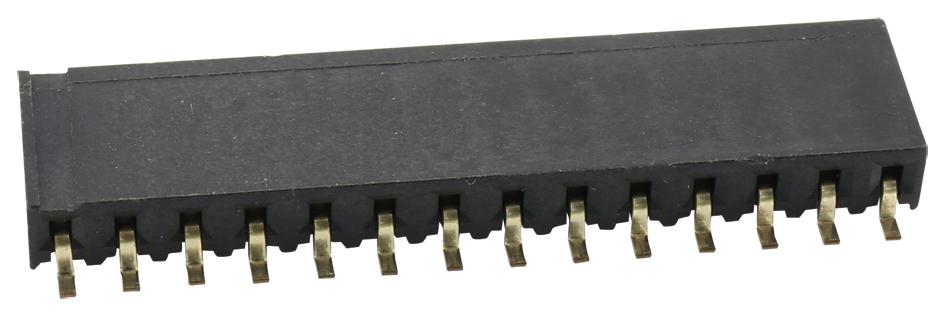

MULTICOMP PRO 2212BR14GSMTR PCB Socket 2.54mm Horizontal Entry SMD
This 2.54mm pitch PCB socket features a horizontal entry design with SMD type connection, suitable for various electronic projects and circuit board integration. Constructed with high-temperature plastic insulators and gold-plated phosphor bronze contacts, it offers excellent durability, corrosion resistance, and electrical performance. With current rating of 3A AC/DC and a voltage rating of 250V AC/DC, it withstands voltages up to 600V AC for one minute. Ideal for reliable, secure, and easy-to-assemble connections in manufacturing and repair applications, this socket supports a wide operating temperature range from -40°C to +105°C, ensuring excellent performance across various environments.
MULTICOMP PRO 2212BR14GSMTR PCB Socket 2.54mm Horizontal Entry SMD Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: High Temp. Plastic (LCP UL94V-0)
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- Dimensions: A varies with number of positions, B varies accordingly, e.g., 2POS: 5.08mm x 2.54mm, 14POS: 35.56mm x 33.02mm
- Design: Single row, horizontal entry, SMD type, compatible with 2.54mm pitch connectors
- RoHS Compliant: Yes
Buy the Buy Multicomp PCB Socket 2.54mm Horizontal Entry Part Number 2212BR14GSMTR Online
Purchase the Multicomp PCB Socket 2.54mm Horizontal Entry SMD online today to guarantee high-quality, durable connections for your circuit boards. Designed with high-temp plastic insulators and gold-plated phosphor bronze contacts, this socket handles up to 3A and 250V withstanding voltage of 600V AC for a minute. Its robust construction supports operating temperatures from -40°C to +105°C, making it suitable for various environments. Easy to install, reliable, and compliant with RoHS standards, it’s ideal for manufacturing, repairs, and prototyping purposes, ensuring your projects stay secure and efficient.
Order your Multicomp Series 2212BR14GSMTR 2.54mm PCB socket today and ensure reliable, easy-to-assemble connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212BR14GSMTR?
You can click on the BUY or RFQ button to purchase 2212BR14GSMTR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212BR14GSMTR?
You can download the 2212BR14GSMTR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212BR14GSMTR?
MULTICOMP PRO
