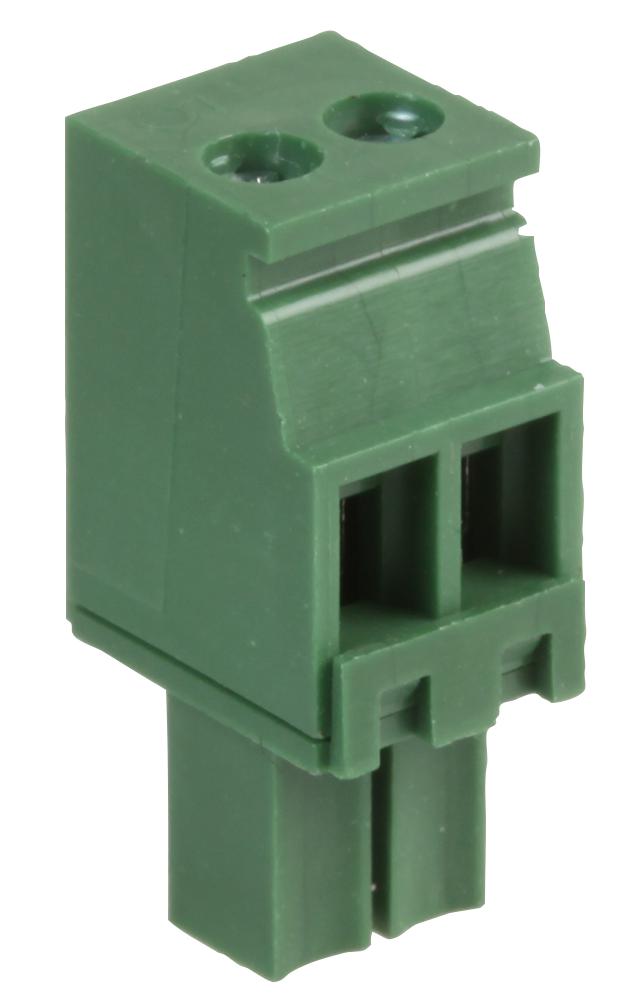

MULTICOMP PRO MC000072 3.5mm Right Angle Connector
The 3.5mm pluggable reverse right angle plug is designed for compact and reliable connections in electronic applications. Constructed with polyamide 66 insulating bodies and phosphor bronze contacts, it offers excellent insulation and conductivity. Rated for 8 amperes at 300V AC, it withstands insulation voltages up to 2000V AC and exceeds 2,000 MΩ insulation resistance at 500V DC. Suitable for PCB mounting, this connector features a 3.5mm pitch and withstands temperatures from -40°C to +105°C. Ideal for space-constrained electronic systems requiring robust, right-angle connection points.
MULTICOMP PRO MC000072 3.5mm Right Angle Connector Specifications:
- Current Rating: 8 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Material: Insulating body Polyamide 66 in green color
- Contact Material: Phosphor Bronze, tin plated
- Cage material: Brass with nickel plating
- Dimensions: Pitch 3.5mm, various pole options from 2 to 12 poles
- Screw material: Steel
- RoHS Compliant
Buy the Buy Multicomp 3.5mm Pluggable Reverse Right Angle Connector Part Number MC000072 Online
Purchase the Multicomp 3.5mm reverse right angle connector online today to ensure robust and space-efficient connections in your electronic assemblies. Featuring a compact 3.5mm pitch and various pole configurations, it provides excellent insulation and conductivity with a maximum current of 8A and voltage of 300V AC. Crafted with high-quality polyamide and phosphor bronze, it withstands temperatures from -40°C to +105°C. Ideal for PCB mounting, this connector guarantees reliability and ease of installation in diverse electronic applications.
Buy Multicomp 3.5mm reverse right angle plug now and experience reliable connection quality for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000072?
You can click on the BUY or RFQ button to purchase MC000072 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000072?
You can download the MC000072 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000072?
MULTICOMP PRO
