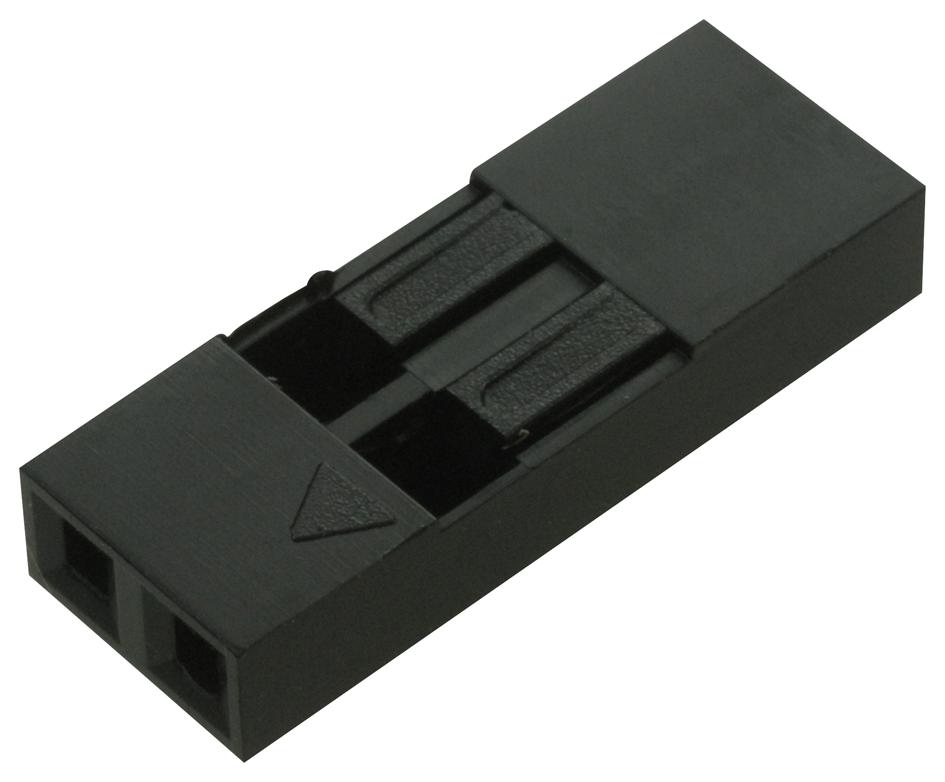

MULTICOMP PRO 2226A02 Crimp Housing Receptacle
The MULTICOMP PRO 2226A-02 is a 2-way crimp housing designed to provide a secure and organized connection for wires. Constructed with a Noryl (UL94V-1) insulator, this housing offers excellent electrical insulation and flame retardancy. It is rated for a current of 3A and a voltage of 250V AC/DC, making it suitable for a range of applications in industrial automation, consumer electronics, and automotive systems. The housing's robust design ensures reliable performance and long-term durability, while its compact size allows for easy integration into various assemblies.
MULTICOMP PRO 2226A02 Crimp Housing Receptacle Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 15mΩ Min.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC/minute
- Temperature Range: -25°C to +85°C
- Insulator Material: Noryl (UL94V-1)
- A Dimension (2 Ways): 5.28mm
- B Dimension (2 Ways): 2.54mm
- A Dimension (12 Ways): 30.68mm
- B Dimension (12 Ways): 27.94mm
- A Dimension (14 Ways): 35.76mm
- B Dimension (14 Ways): 33.02mm
- A Dimension (18 Ways): 45.92mm
- B Dimension (18 Ways): 43.18mm
- A Dimension (20 Ways): 51mm
- B Dimension (20 Ways): 48.26mm
- A Dimension (22 Ways): 56.08mm
- B Dimension (22 Ways): 53.34mm
- A Dimension (24 Ways): 61.16mm
- B Dimension (24 Ways): 58.42mm
- A Dimension Tolerance: ±0.1 (11P to 20P)
- B Dimension Tolerance: ±0.1 (11P to 20P)
- General Tolerance X: ±0.2
- General Tolerance XX: ±0.15
