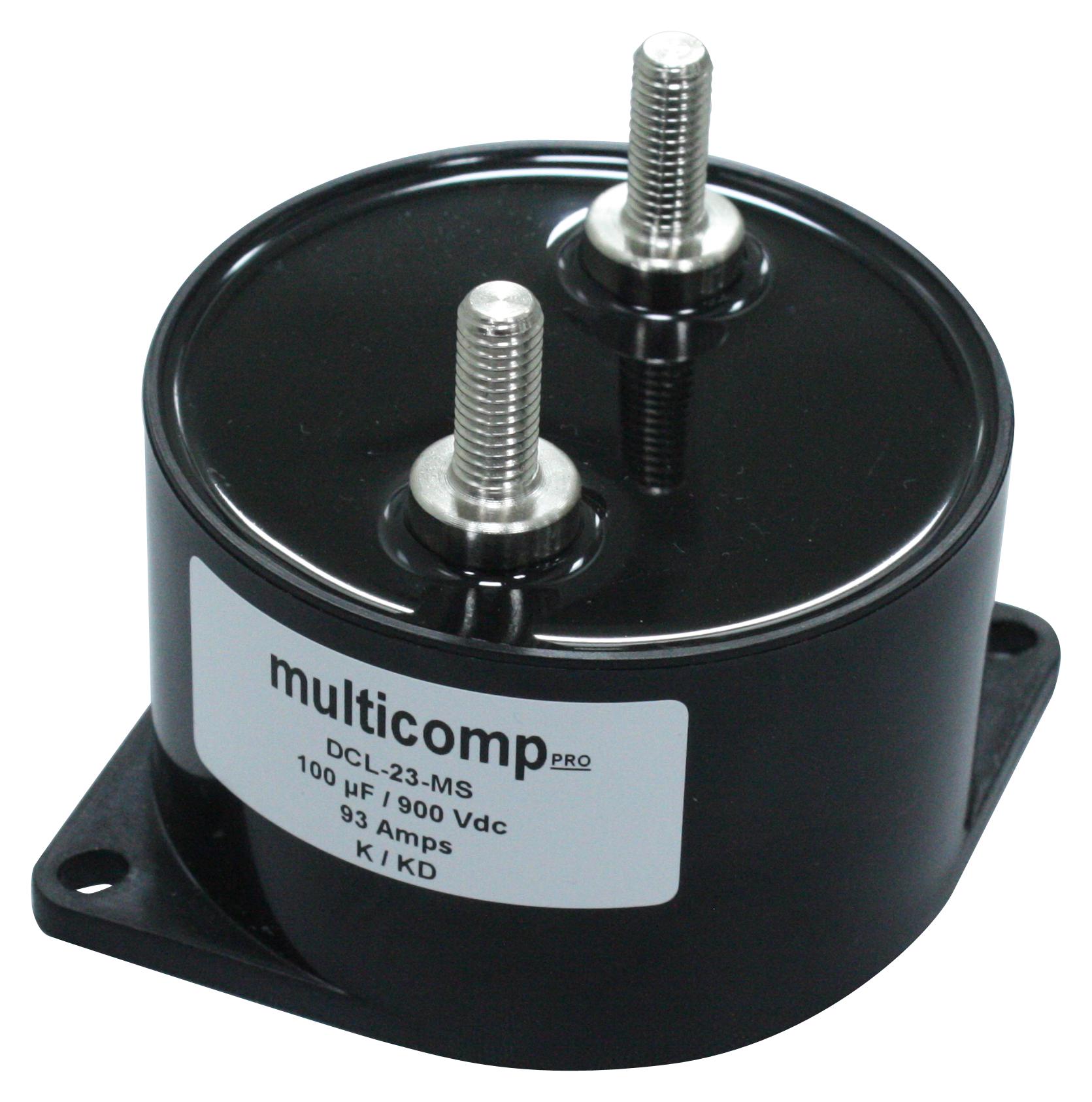

MULTICOMP-PRO MP004005 DC Link Capacitor
High-performance DC link film capacitor designed for reliable industrial applications, including solar inverters, motor drives, and wind power systems. Constructed with metallized polypropylene film inside a UL 94-VO flame-retardant plastic case with nickel-plated brass terminals, this capacitor offers a broad capacitance range from 30μF to 265μF, rated voltages up to 1600V DC, and a temperature range of 0°C to +105°C. It delivers low ESR, self-inductance as low as 11nH, and an expected life of up to 100,000 hours, ensuring durability and efficient energy filtering.
MULTICOMP-PRO MP004005 DC Link Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30μF to 265μF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600V
- Test voltage between terminals: 1.3× rated voltage V DC for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz, 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1,000 MΩ × μF at 25°C
- Markings: Grade, capacitance in pF, rated voltage, max current, tolerance, manufacturing code
Buy the Multicomp Series DC Link Film Capacitors: MP004005
Enhance your industrial equipment with our high-quality DC link capacitor. Designed for solar inverters, motor drives, and wind power systems, it offers low ESR, a broad voltage range up to 1600V DC, and excellent thermal stability. Constructed with metallized polypropylene film inside a flame-retardant UL 94-VO plastic case, it ensures long life and reliable operation. Perfect for energy filtering and power stability, this capacitor supports demanding applications with a life expectancy of up to 100,000 hours. Purchase online now for dependable energy solutions.
Buy Multicomp DC Link Film Capacitor MP004005 now and experience unmatched reliability and performance for industrial power filtering.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004005?
You can click on the BUY or RFQ button to purchase MP004005 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004005?
You can download the MP004005 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004005?
MULTICOMP-PRO
