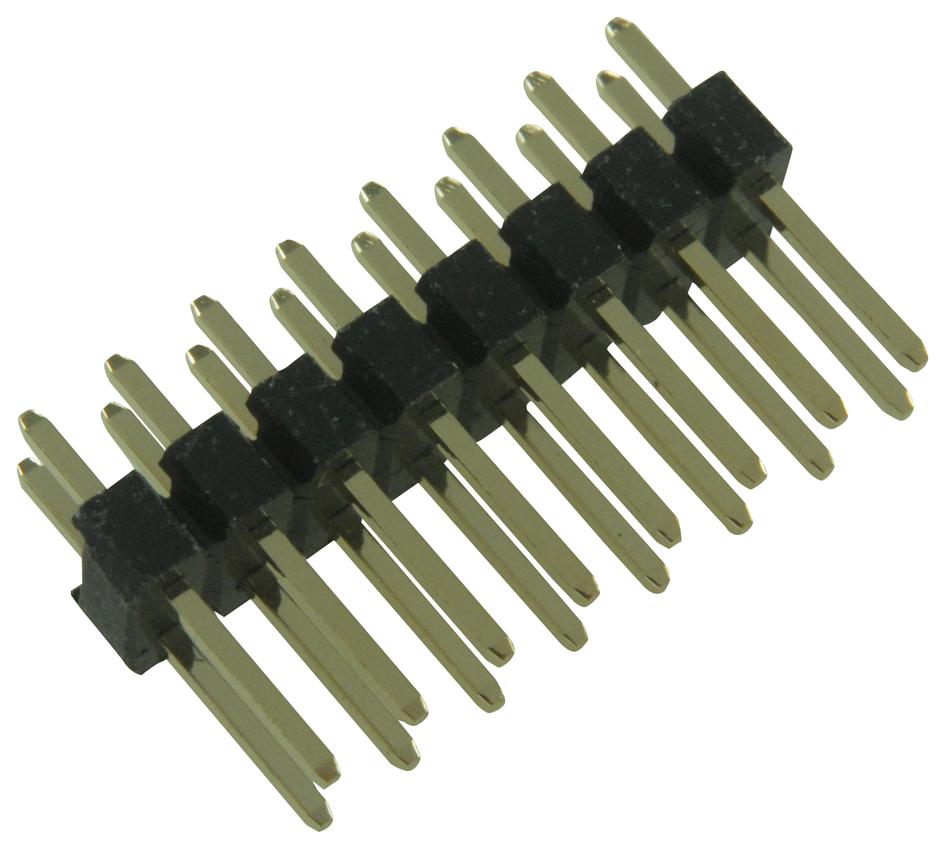

MULTICOMP PRO 2213S16G 16 Way Board to Board Connector
The MULTICOMP PRO 2213S-16G is a double-row, straight board-to-board connector designed for secure and efficient connections between printed circuit boards. It boasts 16 contacts with a 2.54mm pitch, ensuring compatibility with standard spacing. The gold-plated copper alloy contacts provide low contact resistance and excellent signal transmission, while the high-temperature plastic insulator ensures durability and insulation. This connector is suitable for a wide range of applications including industrial automation, consumer electronics, and telecommunications equipment where reliable board-to-board connections are essential. It is rated for a current of 3A and a voltage of 250V AC, with a withstand voltage of 600V.
MULTICOMP PRO 2213S16G 16 Way Board to Board Connector Specifications:
- Series: 2213S
- Connector Type: Board to Board
- Pitch Spacing: 2.54mm
- No. of Rows: 2
- No. of Contacts: 16
- Gender: Plug
- Contact Termination: Solder
- Contact Resistance: 20mΩ
- Current Rating: 3A
- Insulation Resistance: 1,000MΩ
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 250V AC
- Withstand Voltage: 600V
- Insulator Material: High Temperature Plastic
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
