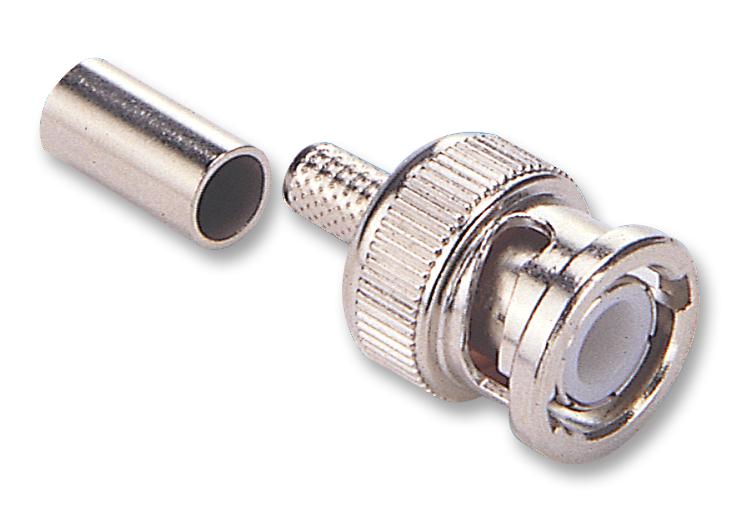

MULTICOMP PRO MP1310158U BNC connector
The 13-10-1 58U is a high-quality BNC straight plug connector designed for coaxial cables, featuring a gold-plated brass contact and a nickel-brass body. It is insulated with PTFE meeting ASTM D1457 and D1710 standards, ensuring durability and excellent performance. This connector provides a reliable cable mounting with crimp-type termination suitable for RG-58 cables, making it ideal for defense, military, aerospace, communications, networking, and industrial applications. Its robust construction and precise impedance make it a preferred choice for professional RF connections, offering excellent electrical and mechanical stability.
MULTICOMP PRO MP1310158U BNC connector Specifications:
- Frequency Range: DC - 4GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.5 Max.
- Shell Material: Zinc, Nickel Plated
- Crimp Ferrule Material: Brass, Nickel Plated
- Center Contact Material: Brass, Gold Plated
- Insulation Material: PTFE
- Cable Type: RG-58U or Equivalent
- Cable Attachment: Outer: Crimp, Inner: Solder/Crimp
- Crimp Size Required: Contact: 1.8(0.071) Hex, Ferrule: 5.5(0.216) Hex
- Operating Temperature Range: -20°C to +80°C
- Dimensions: 21.5 mm Max. diameter
- RoHS Compliant
Buy the Multicomp Series BNC Connector: MP1310158U
Purchase the Multicomp Series BNC connector MP1310158U online today and ensure high-quality RF signal transmission with robust construction. Ideal for coaxial cables like RG-58U, it features gold-plated brass contacts and a nickel-plated zinc shell for durability. Its PTFE insulation provides exceptional electrical performance, making it suitable for aerospace, military, and industrial use. Order now for quick delivery and boost your professional communication and networking projects with a trusted, high-performance RF connector.
Buy Multicomp Series BNC Connector MP1310158U now and experience unmatched reliability and RF performance for professional coaxial connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP1310158U?
You can click on the BUY or RFQ button to purchase MP1310158U from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP1310158U?
You can download the MP1310158U datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP1310158U?
MULTICOMP PRO
