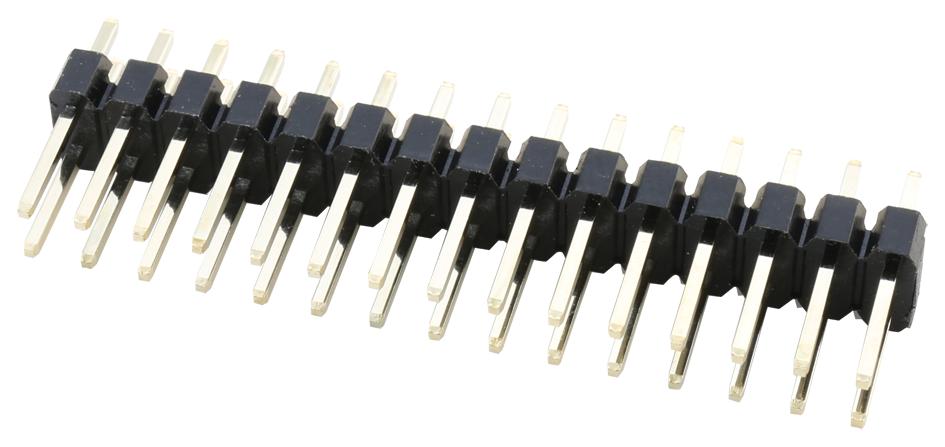

MULTICOMP-PRO 2213S30G PCB Header
This 2.54mm pitch vertical through-hole header features a double row design, suitable for PCB mounting, and supports various configurations up to 60 positions. It operates at 3A current and 250V voltage with gold-plated contacts for reliable connectivity. Constructed with UL94V-0 rated PBT insulator, withstands voltages up to 600V AC for one minute, and performs within a temperature range of -40°C to +105°C. Designed for durability, it includes high insulation resistance and low contact resistance, ideal for industrial electronic applications.
MULTICOMP-PRO 2213S30G PCB Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: PBT (UL94V-0)
- Contact Material: Gold Plated
- Number of Positions: 26, 30, 50, 60
- Pitch: 2.54mm
- Design: Double row, vertical through hole
- RoHS Compliant: Yes
Buy the Multicomp Pro 2213S30G – Reliable PCB Header for Industrial Applications
Order the Multicomp Pro 2213S30G PCB header online now for reliable connections in your electronic projects. With a 2.54mm pitch, double row design, and gold-plated contacts, it ensures durable and consistent performance. Suitable for industrial applications, it operates at 3A/250V and withstands voltages up to 600V AC for one minute. Made from UL94V-0 rated PBT insulator, it performs accurately within -40°C to +105°C, offering excellent insulation resistance and low contact resistance for all your manufacturing needs.
Get Multicomp Pro 2213S30G today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2213S30G?
You can click on the BUY or RFQ button to purchase 2213S30G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213S30G?
You can download the 2213S30G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2213S30G?
MULTICOMP-PRO
