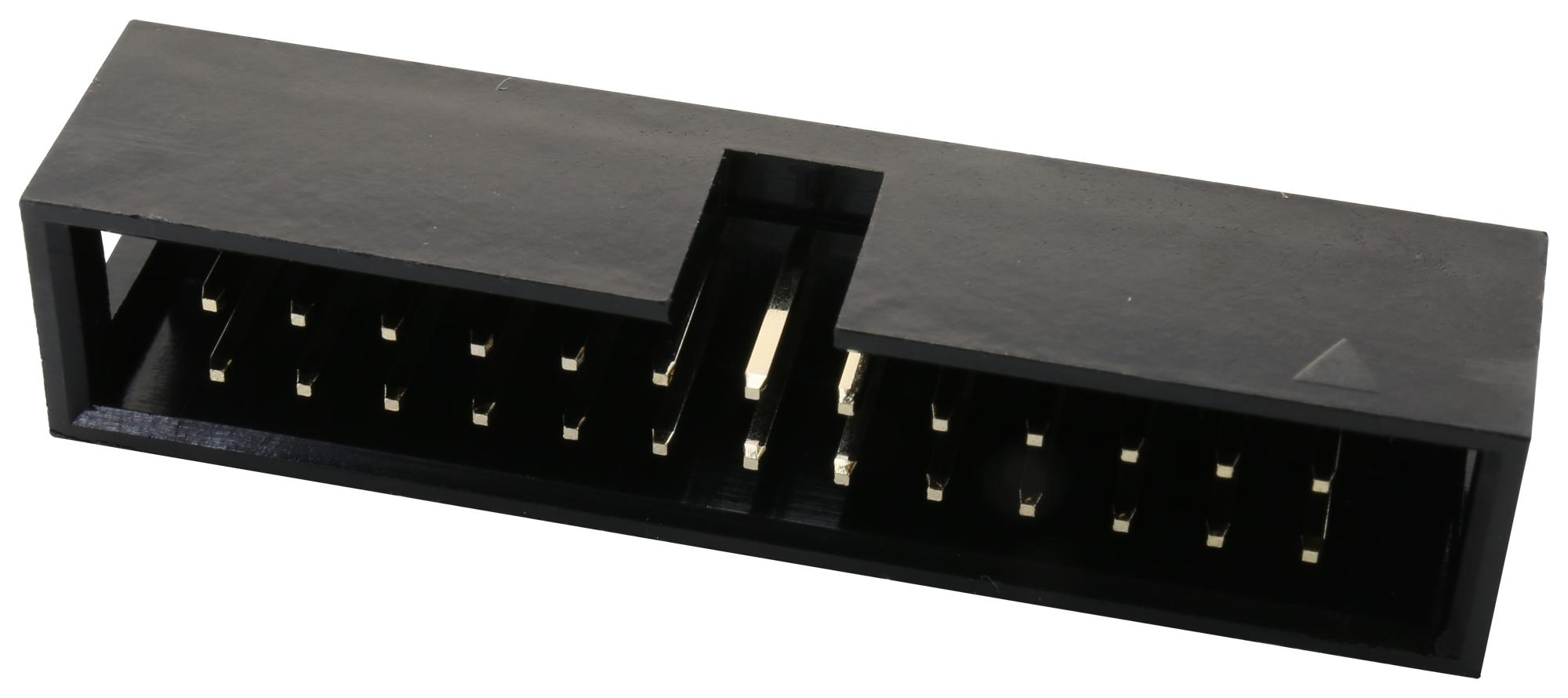

MULTICOMP-PRO MC2542600STDIP Vertical Box Header
High-quality 2.54mm double row vertical through-hole box headers designed for reliable connections in electronic assemblies. These headers feature gold-plated copper contacts, PBT insulators with UL94V-0 flammability rating, and are compliant with RoHS standards. Rated for 8A AC/DC current and 250V AC/DC voltage, they withstand voltage up to 600V AC for one minute and operate efficiently from -40°C to +105°C. Suitable for various PCB applications, these headers offer precise dimensions, multiple positions, and key features for secure, durable connections in industrial environments.
MULTICOMP-PRO MC2542600STDIP Vertical Box Header Specifications:
- Material: PBT insulator, Copper Alloy contact with gold plating
- Flammability: UL94V-0
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dimensions vary with model, typically in the range of 12.96mm to 86.62mm
- Number of Positions: 6 to 64, arranged in 2 rows, with keying feature
- Dimensions (A, B, C): Ranges from 15.28mm to 88.94mm
- RoHS compliant, RoHS standards met
- Connectors suited for PCB mounting, reliable electrical contact, and durable mechanical connection
Buy the Multicomp Pro 2.54mm Box Header – Reliable Vertical Connectors for Industrial Applications
Purchase the Multicomp Pro Vertical Box Header online today—engineered for durability, precise fit, and reliable electrical connections in industrial, manufacturing, and electronic assembly applications. Designed with gold-plated copper contacts and tough PBT insulators, these headers support high current and voltage ratings, withstand harsh environments, and ensure long-term performance. Their compact dimensions and variety of positions make them versatile for various PCB layouts, providing essential connection solutions for engineers and technicians seeking quality components easily available for quick delivery.
Get Multicomp Pro 2.54mm Box Header today—built for precision and long-lasting durability in industrial and electronics projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC2542600STDIP?
You can click on the BUY or RFQ button to purchase MC2542600STDIP from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2542600STDIP?
You can download the MC2542600STDIP datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC2542600STDIP?
MULTICOMP-PRO
