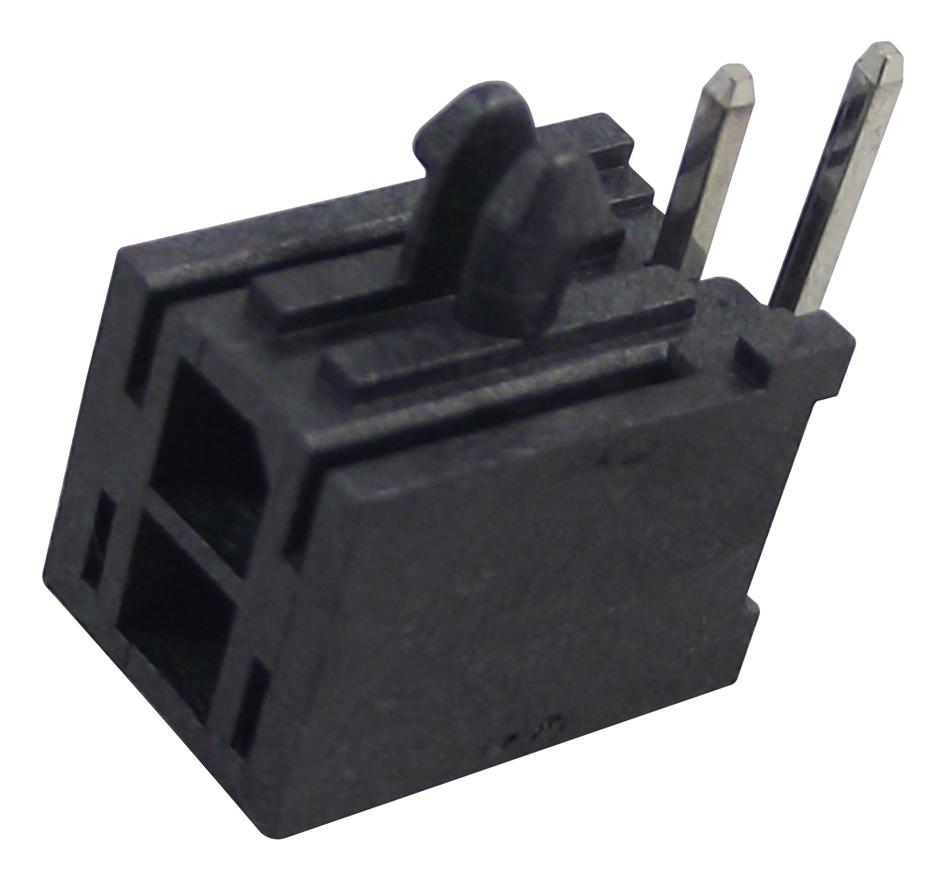

MULTICOMP PRO MC34337 Double Row Header Connector
The 2261 series features 3mm pitch double row header connectors designed for through-hole mounting, ideal for compact electronic assemblies and PCB connections. Made from nylon 46 (UL94V-2) insulators with copper alloy tin-plated contact pins, these headers support a current rating of 5.0A AC/DC and a voltage rating of 250V AC/DC. They withstand voltage of 1,500V AC for one minute, operate within -25°C to +105°C, and adhere to RoHS compliance. Their precise dimensions and robust insulation ensure reliable, durable connections suitable for various electronic projects.
MULTICOMP PRO MC34337 Double Row Header Connector Specifications:
- Current Rating: 5.0A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: > 10mΩ
- Insulation Resistance: Min. 1,000MΩ
- Withstanding Voltage: 1,500V AC for 1 minute
- Operating Temperature Range: -25°C to +105°C
- Material: Nylon 46 (UL94V-2) insulator
- Contact Material: Copper Alloy, Tin Plated
- Pitch: 3mm
- Dimensions vary with part number: 2.9mm to 15.7mm length options
- Suitable for PCB through-hole mounting
- Compliance: RoHS
Buy the Buy Premier Farell Multicomp 2261 Series Part Number MC34337 Online
Enhance your electronic assemblies with the high-quality double row header connectors from Premier Farell's Multicomp Pro series. Designed for through-hole PCB mounting, these connectors feature durable nylon insulators with tin-plated copper contacts rated at 5A and 250V. Certified RoHS compliant and capable of withstanding 1,500V AC, they operate efficiently within -25°C to +105°C. Compact, reliable, and easy to install, these headers are ideal for a wide range of electronic projects requiring secure and durable connections. Purchase online now for fast delivery!
Order your Premier Farell series 2261 part number MC34337 today and ensure reliable, high-quality PCB connections with perfect dimensional fit.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34337?
You can click on the BUY or RFQ button to purchase MC34337 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34337?
You can download the MC34337 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34337?
MULTICOMP PRO
