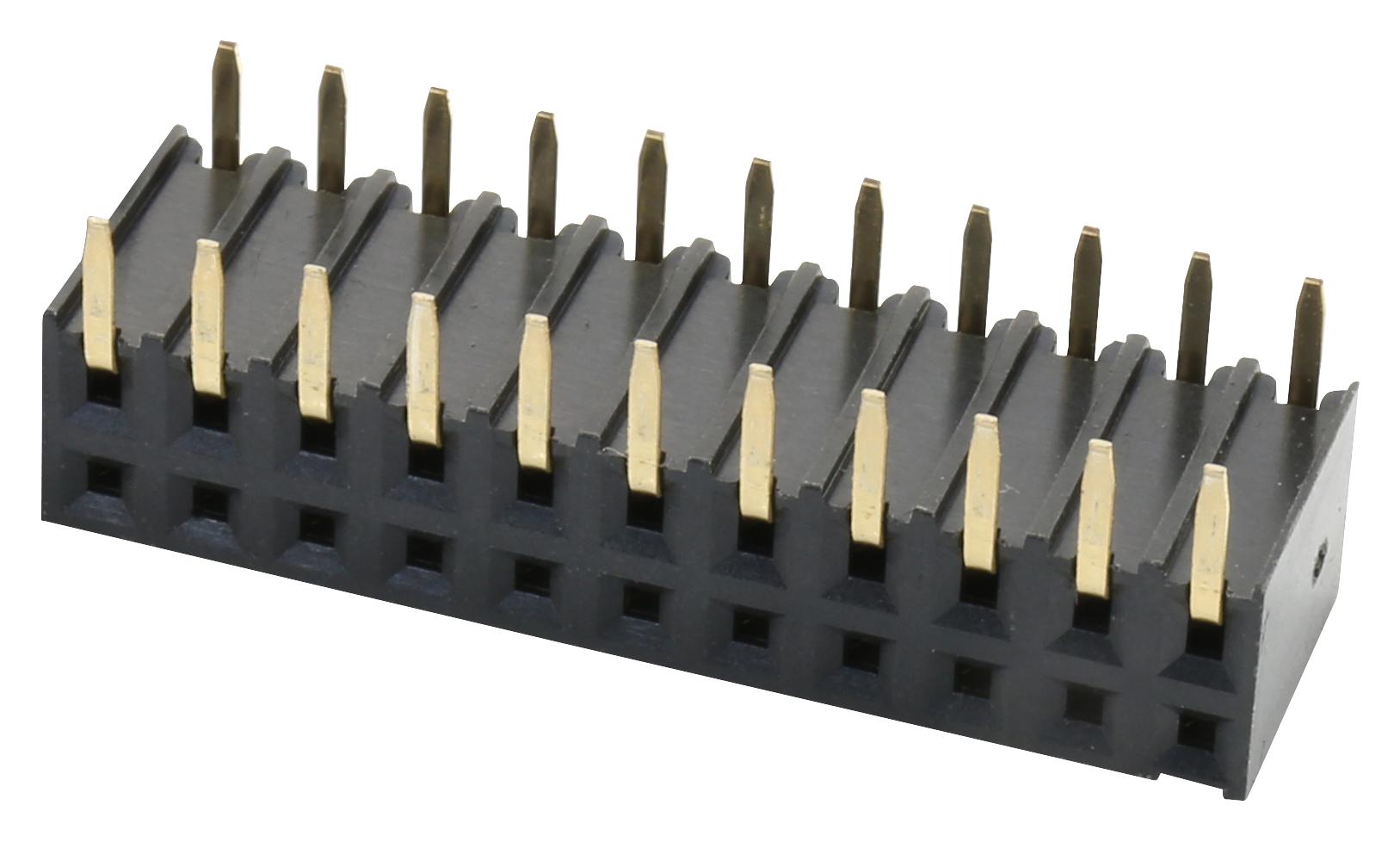

MULTICOMP PRO 2214BR10G PCB Socket
This 2.54mm pitch double row PCB socket features a through-hole mounting design with horizontal entry suitable for various industrial and electronic applications. It supports a current rating of 3A AC/DC and a voltage rating of 250V AC/DC, ensuring reliable connections for circuit boards. Made from high-temp plastic with gold-plated phosphor bronze contacts, it offers excellent insulation resistance of at least 1000MΩ and withstands voltages up to 600V AC for one minute. Operating efficiently within -40°C to +105°C temperature range, it is RoHS compliant, providing durability and safety for industrial electronics.
MULTICOMP PRO 2214BR10G PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: High Temp. Plastic (UL94V-0)
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
Buy the Multicomp Pro 2214BR10G – Reliable PCB Socket for Industrial Applications
Enhance your electronic projects with the durable 2.54mm PCB socket, featuring a double row, through-hole design, gold-plated contacts, and high-temperature plastic insulation. Suitable for industrial and circuit board applications, this socket supports 3A current and 250V voltage, ensuring secure connections. Operating efficiently from -40°C to +105°C, it is RoHS compliant, safe, and reliable. Purchase online today and benefit from a high-quality component that guarantees optimal connectivity and long-term performance in your electronic systems.
Buy Multicomp Pro 2214BR10G now and experience unmatched reliability and performance in your electronic assembly projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2214BR10G?
You can click on the BUY or RFQ button to purchase 2214BR10G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214BR10G?
You can download the 2214BR10G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2214BR10G?
MULTICOMP PRO
