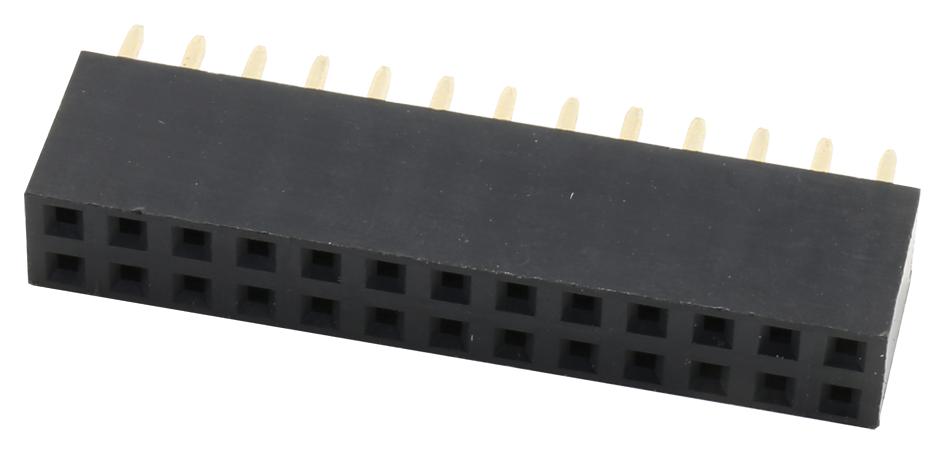

MULTICOMP PRO 2214S26SG85 PCB Socket
The 26-pin PCB socket features a 2.54mm pitch, rated for 250V AC/DC and capable of handling a current of 3A. It has a maximum contact resistance of 20 milliohms and can withstand up to 600V AC for one minute. Made with PBT insulator (UL94V-0) and gold-plated copper alloy contacts, it ensures reliable electrical connection. This vertical through-hole socket measures approximately 32.52mm wide, 11.5mm high, and 5.08mm deep, suitable for PCB applications requiring durable and precise connectors in electronic projects.
MULTICOMP PRO 2214S26SG85 PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT insulator (UL94V-0), Copper Alloy contacts, Gold Plated finish
- Dimensions: Width 32.52mm, height 11.5mm, depth 5.08mm
- Number of Positions: 26
- Type: Vertical, Through Hole
- RoHS Compliant
- Contact Material: Copper Alloy
- Finish: Gold Plated
Buy the multicomp 2214S26SG85 – Reliable 2.54mm PCB Socket for Industrial Applications
Secure your electronic projects with the multicomp PCB Socket featuring a 2.54mm pitch, rated for 250V AC/DC and capable of handling 3A. Its gold-plated copper contacts ensure reliable electrical connections, making it ideal for industry-grade, durable, and high-performance PCB applications. Easy to install with through-hole mounting, it measures approximately 32.52mm wide, 11.5mm high, and 5.08mm deep. Perfect for OEMs and repair technicians seeking quality connectors for dependable circuit connections.
Buy multicomp 2214S26SG85 now and experience unmatched reliability and performance for your electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2214S26SG85?
You can click on the BUY or RFQ button to purchase 2214S26SG85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214S26SG85?
You can download the 2214S26SG85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2214S26SG85?
MULTICOMP PRO
