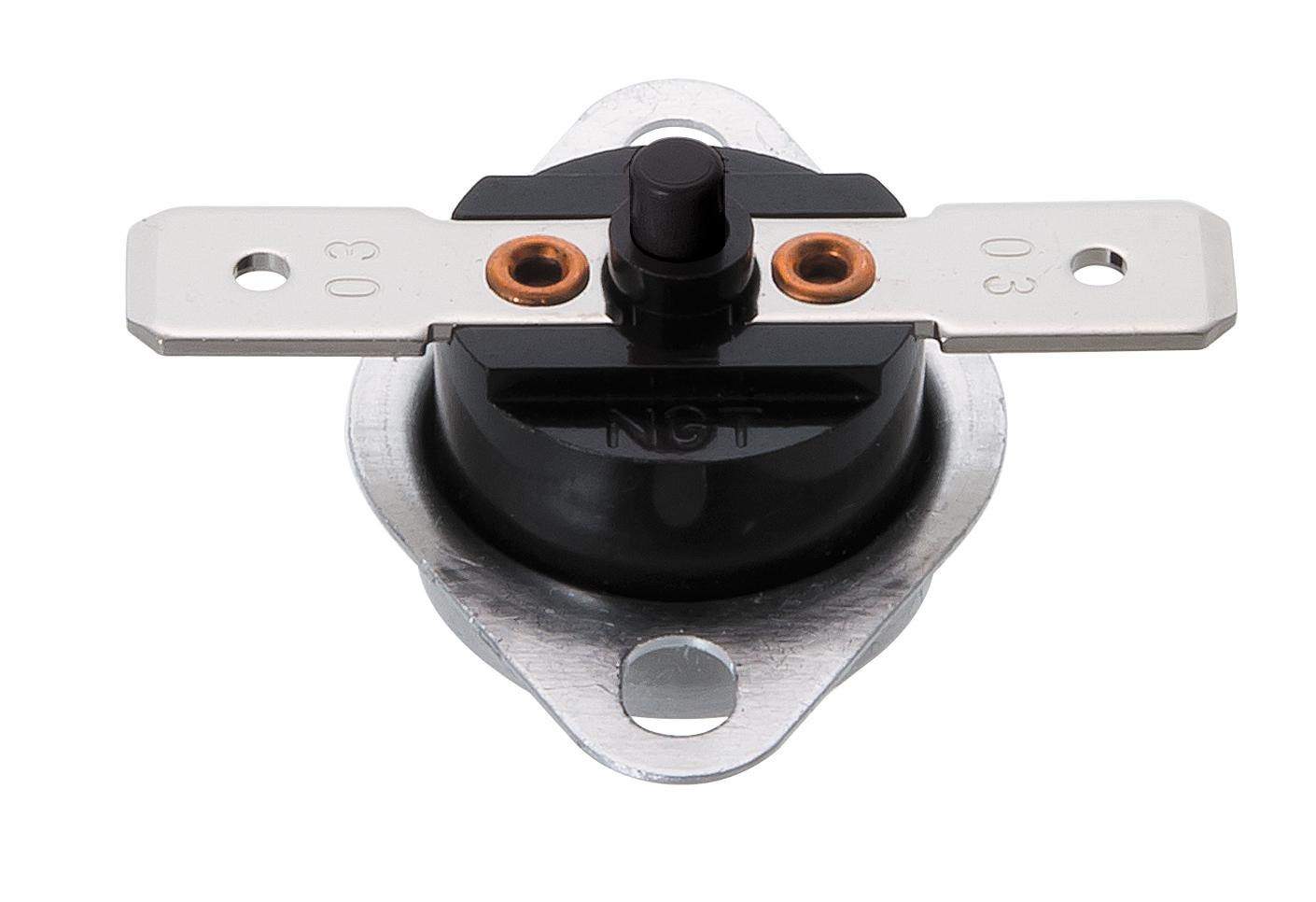

MULTICOMP PRO MP05EN130DEGNC Temperature Switch
The 1/2 inch Disc Type Thermostat is a reliable manual reset switch designed for temperature control applications. It features a bimetal disc and stainless steel contacts, with a maximum operating temperature of 150°C. The device has flexible quick connect terminals, complies with UL, CSA, and VDE standards, and is suitable for use in hot and cold air circulation systems. Its sturdy construction ensures durability, making it ideal for industrial and household heating or cooling systems requiring precise temperature regulation.
MULTICOMP PRO MP05EN130DEGNC Temperature Switch Specifications:
- Basic features: SPST Manual reset, contacts open on temperature rise, not automatic reset
- UL: AC120V/15A, AC240V/10A, CSA: AC125V/15A, AC250V/10A, VDE: AC250V/16A
- Maximum operating temperature: 150°C
- Insulation resistance: Not less than 1,000MQ/DC500V
- Dielectric strength: Not less than AC 1,500V/1min. or AC 1,800V/1sec.
- Material: Bimetal disc, stainless steel contacts, phenolic resin case, brass terminals, aluminum cap
- Dimensions: 1/2 inch disc, with quick connect terminals
- RoHS compliant, structural materials conform to UL and CSA standards
- Contact material: Silver-Nickel alloy
- External material: Phenolic resin, beryllium copper retainer, brass terminals
- Temperature ratings: 45°C, 55°C, 80°C, 115°C, 130°C, 150°C (various models)
Buy the Multicomp 05EN130DEGNC – Reliable Temperature Control for Industrial Applications
Purchase the Multicomp 05EN130DEGNC online today and enhance your temperature control systems with this durable, reliable, and easy-to-install thermostat switch. Its manual reset feature ensures safety and precision, making it ideal for various industrial and household applications requiring precise temperature monitoring up to 150°C. Benefit from quick connect terminals for hassle-free wiring and stringent compliance with UL, CSA, and VDE standards. Order now to improve your system's efficiency and ensure reliable operation in demanding environments.
Buy Multicomp 05EN130DEGNC now and experience unmatched reliability and performance in temperature regulation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP05EN130DEGNC?
You can click on the BUY or RFQ button to purchase MP05EN130DEGNC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP05EN130DEGNC?
You can download the MP05EN130DEGNC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP05EN130DEGNC?
MULTICOMP PRO
