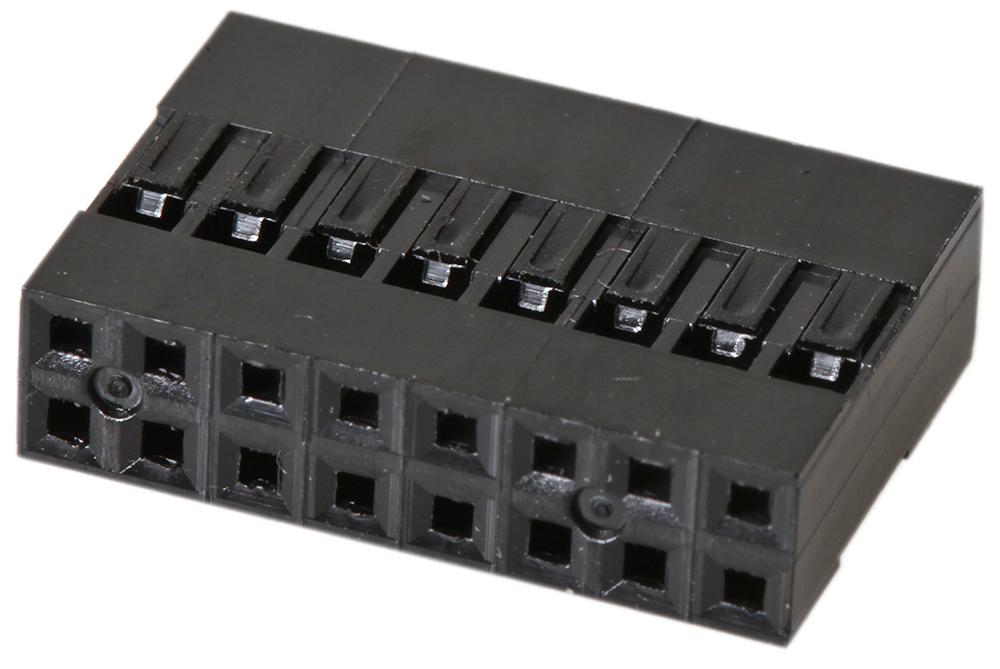

MULTICOMP PRO 2226B16 16 Way Mini Latch Housing
The MULTICOMP PRO 2226B-16 is a 16-way wire-to-board connector housing designed for reliable and secure connections in a variety of applications. This connector features a mini latch mechanism for positive locking and is suitable for use with wires ranging from 28AWG to 24AWG. Constructed with a polyester insulator and phosphor bronze contacts with tin or gold plating, it offers excellent electrical performance and durability. It is ideal for applications requiring a compact and robust wire-to-board connection, such as industrial automation, consumer electronics, and automotive systems.
MULTICOMP PRO 2226B16 16 Way Mini Latch Housing Specifications:
- Connector Type: Wire to Board
- Contact Termination: Crimp
- Gender: Receptacle
- No. of Contacts: 16
- No. of Rows: 2
- Pitch Spacing: 2.54mm
- Withstand Voltage: 600V
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,000V AC/minute
- Temperature Range: -25°C to +125°C
- Application Wires: 28AWG to 24AWG
- Insulator Material: Polyester
- Contact Material: Phosphor Bronze
- Finish: Tin Plated or Gold Plated
- A Dimension: 17.78mm
- B Dimension: 20.32mm
Buy the 2226B-16 MULTICOMP PRO 16 Way Mini Latch Housing | myMectronic
Securely purchase the MULTICOMP PRO 2226B-16 online for reliable connectivity and fast delivery.
