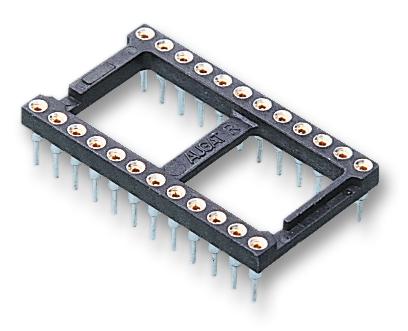

MULTICOMP-PRO 2227MC2403F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC-24-03-F1 is a precision-engineered IC socket designed for automated assembly and reliable circuit board integration. Constructed with phosphor bronze contacts and a PBT insulator, this socket ensures excellent electrical conductivity and mechanical stability. Its 2.54mm pitch is compatible with standard IC footprints, making it suitable for a wide range of applications in industrial automation, consumer electronics, and telecommunications equipment. The socket's robust design and tin plating provide long-term reliability and corrosion resistance.
MULTICOMP-PRO 2227MC2403F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulator Resistance: 1,000MΩ
- Withstanding Voltage: 1000V AC for one minute
- Operating Temperature: -55°C to +125°C
- Insulator Material: PBT
- Contact Material: Phosphor Bronze
- Plating Material: Tin Plating
- Dimension A: 30.48mm
- Dimension B: 27.94mm
- Dimension C: 17.78mm
- Dimension D: 15.24mm
- Spacing: 06
Buy the 2227MC-24-03-F1 MULTICOMP PRO IC Socket Machine Pin | myMectronic
Purchase the MULTICOMP PRO 2227MC-24-03-F1 IC Socket securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2227MC2403F1?
You can click on the BUY or RFQ button to purchase 2227MC2403F1 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2227MC2403F1?
You can download the 2227MC2403F1 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2227MC2403F1?
MULTICOMP-PRO
