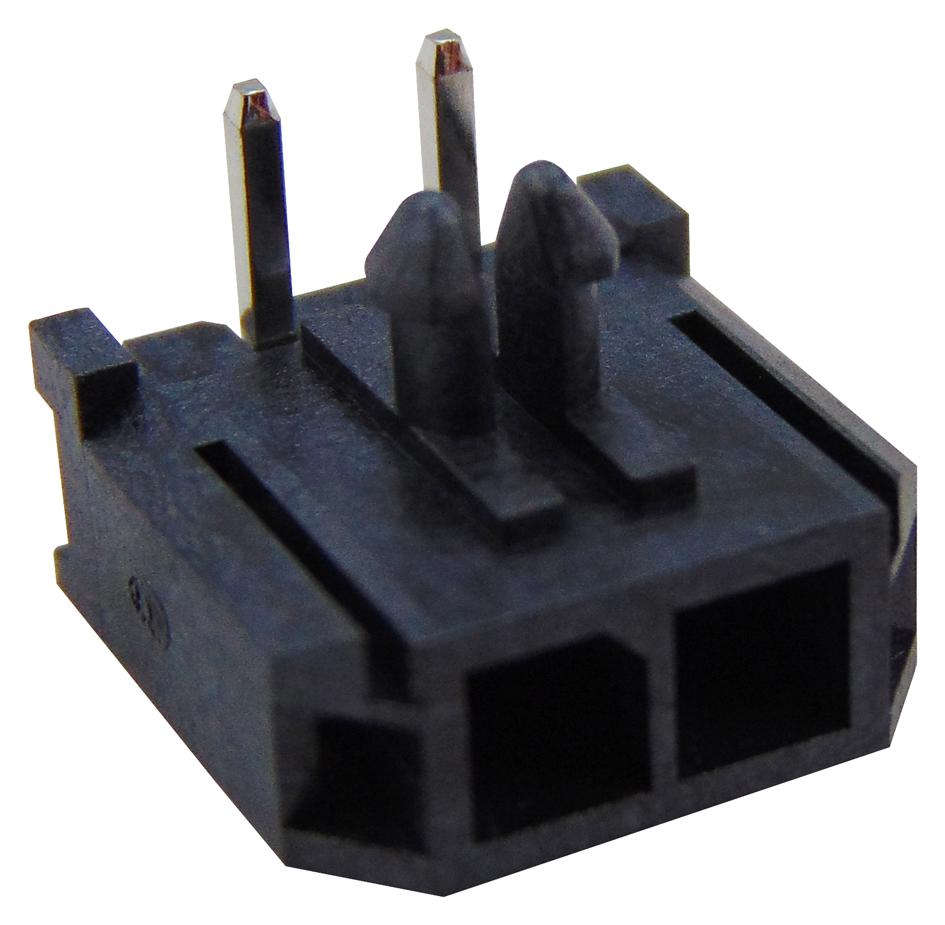

MULTICOMP PRO 22615561RA02 Single Row Header
The 2261 series single row headers feature a 3mm pitch and through-hole mounting, suitable for various electrical connections and PCB applications. These headers operate within a temperature range of -25°C to +105°C, with a current rating of 5.0A AC/DC and a voltage rating of 250V AC/DC. Made from nylon 46 (UL94V-2) insulator and copper alloy tin-plated contact pins, they are compliant with RoHS standards. Available in configurations of 2, 3, or 4 positions, dimensions vary with model, providing reliable and secure electrical connectivity for industrial and electronic projects.
MULTICOMP PRO 22615561RA02 Single Row Header Specifications:
- Current Rating: 5.0A AC/DC
- Voltage Rating: 250V AC/DC
- Max. Contact Resistance: >10mΩ
- Insulation Resistance: ≥1,000MO
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -25°C to +105°C
- Wafer Insulator: Nylon 46 (UL94V-2)
- Contact Pin Material: Copper Alloy Tin Plated
- Number of Positions: 2, 3, or 4
- Dimensions (varies with model): 2 positions 9.65mm, 3 positions 12.65mm, 4 positions 15.65mm
Buy the Buy Multicomp Pro 3mm Pitch Single Row Headers Part Number 22615561RA02 Online
Purchase the 2261 series single row headers online for dependable electrical connections in your PCB designs. These headers feature a 3mm pitch, through-hole mounting, and are made from durable nylon insulator and copper alloy contacts tin plated for corrosion resistance. Rated at 5A and 250V, they operate between -25°C to +105°C, ensuring performance across various environments. With configurations of 2, 3, or 4 positions, they fit a range of applications while providing secure and easy connection points to streamline your assembly process.
Buy Multicomp Pro 22615561RA02 now and experience reliable PCB connections with high-quality copper contacts and RoHS compliance.
