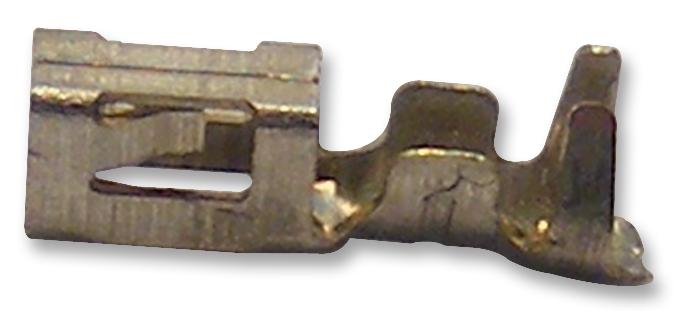

MULTICOMP PRO 2318TF Crimp Pin
The 2318TF is a brass pin crimp contact with a tin-plated finish, designed for wire sizes ranging from 24 to 28 AWG. It features a maximum contact resistance of 20 milliohms, supports a maximum current of 3A (AC/DC), and a maximum voltage of 250V (AC/DC). The operating temperature range spans from -40°C to 85°C. Suitable for industrial applications, this component offers reliable performance in various environments. It mates with 2318HF series housing and is supplied in reels containing 8,000 pieces, ideal for high-volume manufacturing.
MULTICOMP PRO 2318TF Crimp Pin Specifications:
- Current Rating: 3A (AC/DC)
- Voltage Rating: 250V AC / DC
- Contact Resistance: 20mΩ Max
- Withstanding Voltage: 1,000V AC / minute
- Operating Temperature Range: -40°C to 85°C
- Material: Brass
- Finish: Tin Plated
- Application: Wires AWG #22 to #28
- Insulation O.D.: Max. 1.5mm
- Pack Quantity: 8,000 pcs per reel
Buy the Multicomp Series Crimp Pin: 2318TF
Purchase the Multicomp 2318TF crimp pin online today for reliable and efficient wire termination in your industrial projects. Designed for wires from 24 to 28 AWG, this brass pin features a tin-plated finish for corrosion resistance, supporting a current of up to 3A and voltage of 250V. Its operating temperature range of -40°C to 85°C makes it suitable for diverse environments. Supplied in high-volume reels of 8,000 pieces, it ensures your manufacturing process remains efficient and cost-effective, delivering consistent high-quality performance.
Get Multicomp 2318TF today—built for precision and long-lasting durability in industrial wire connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2318TF?
You can click on the BUY or RFQ button to purchase 2318TF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2318TF?
You can download the 2318TF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2318TF?
MULTICOMP PRO
