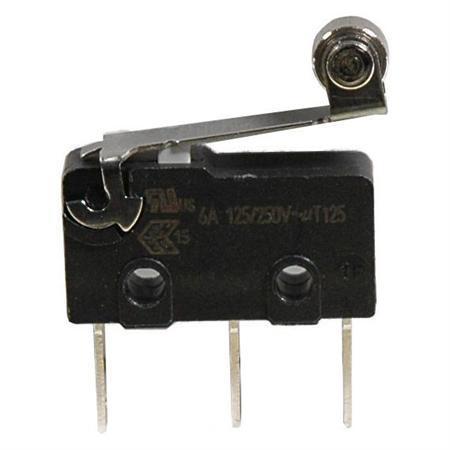

MULTICOMP PRO 2619010 Micro Switch
The Zippy SM1 series micro switch is a compact SPDT switch rated for 6A at 250VAC, designed for precise applications with a straight push actuator, 17.4mm lever, and 17.2mm roller. It features a contact resistance of up to 300 milliohms, an insulation resistance of at least 100 megaohms, and dielectric strength of 1000VAC RMS. Operating temperature ranges from -13°F to 185°F, with a service life of approximately 10,000 cycles. Suitable for industrial automation, control systems, and precision switching applications, ensuring reliable performance in demanding environments.
MULTICOMP PRO 2619010 Micro Switch Specifications:
- Circuit Arrangement: SPDT (Single pole double throw)
- Rating: 6A 125/250V AC; 5A 30V DC
- Service Life: Min. 10,000 operations
- Operating Frequency: 10~30 operations per minute
- Mechanical Service Life: Min. 5,000,000 operations
- Operating Temperature: -40°C to +85°C
- Vibration Resistance: 10-55Hz, displacement 0.75mm (p-p)
- Initial Contact Resistance: Max. 300mΩ
- Insulation Resistance: Min. 100MΩ (500V DC/minute)
- Dielectric Strength: 1,000VAC RMS between contacts; 1,500VAC RMS between live and dead parts
- Shock Resistance: Destruction at 100G, Max 1,000m/s2
- Maximum Soldering Temperature: 350°C within 5 seconds
- Physical Dimensions: Length approx. 17.9mm ±1mm, width 21mm max, height 17.2mm lever, roller diameter 0.9mm, travel 0.55mm min., max. 4.05mm.
- Material: Metal contacts, plastic housing
Buy the Multicomp micro switch – Reliable SPDT switch for Industrial Applications 2619010
Enhance your automation systems with the reliable and compact micro switch designed for industrial environments. This SPDT switch supports 6A at 250VAC, ensuring efficient and accurate switching for control panels, machinery, and safety systems. Its durable construction allows for approximately 10,000 cycles, while the high dielectric strength and insulation resistance guarantee safety and performance. Easy soldering and installation make it perfect for precise applications. Order online today and upgrade your control solutions with this high-quality micro switch for durable, dependable operation.
Buy Multicomp micro switch 2619010 now and experience unmatched reliability and performance in your industrial automation projects.
