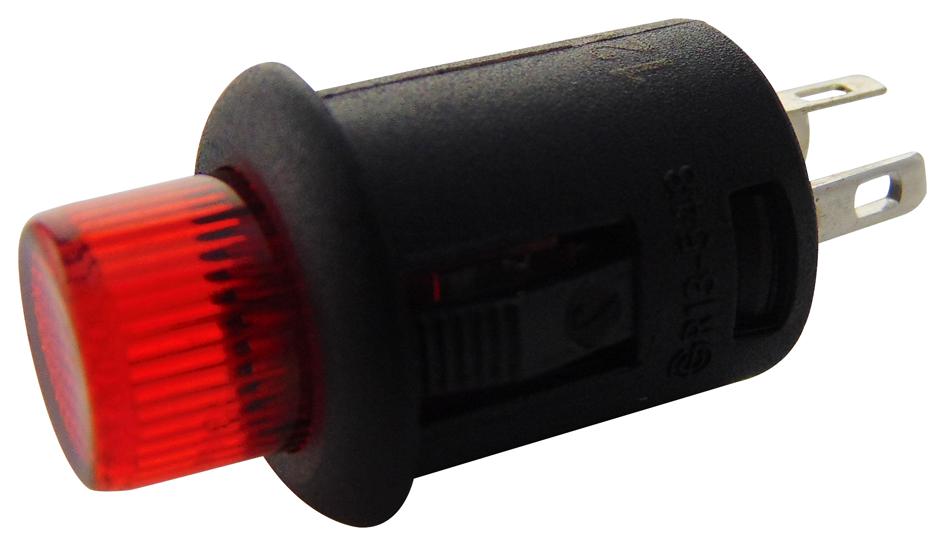

MULTICOMP PRO R13548DL05BR Illuminated Pushbutton Switch
The R13-548DL-05-BR is a single-pole, single-throw illuminated pushbutton switch with solder terminals and ON-OFF LED, featuring a red actuator and black frame. Suitable for industrial use, it supports 6A at 14V DC and 3A at 28V DC. It provides an insulation resistance of at least 100 MΩ at 500V DC, a dielectric strength of 1000 VAC, and operates within -0°C to 65°C. The switch’s dimensions and mounting hole compatibility make it versatile for panel mounting in control panels. Manufactured by Multicomp Pro, known for quality and durability.
MULTICOMP PRO R13548DL05BR Illuminated Pushbutton Switch Specifications:
- Current Rating: 6A at 14V DC, 3A at 28V DC
- Insulation Resistance: at least 100 MΩ at 500V DC
- Dielectric Strength: 1000 VAC for 1 minute
- Operating Temperature: -0°C to 65°C
- Actuator Color: Red
- Frame Color: Black
- Mounting Hole Diameter: compatible with panel thickness 0.7 to 3 mm
- Dimensions: Based on model specifications, suitable for panel mounting
- Contact Resistance: Max. 50 mΩ
- Flammability: UL 94V-0
- Material: Metal and plastic housing with solder terminals
Buy the Buy multicomp:ro Switch Part Number R13548DL05BR Online
Purchase the multicomp:ro R13-548DL-05-BR switch online today to enhance your control panel installations. Featuring a durable red actuator, solder terminals, and LED illumination, this switch supports 6A at 14V DC and 3A at 28V DC. It offers excellent insulation resistance of 100 MΩ at 500V DC, a dielectric strength of 1000 VAC, and operates in a temperature range from -0°C to 65°C, ensuring durability in demanding industrial environments. Improve your systems' reliability with this high-quality switch, readily available online.
Buy multicomp:ro R13-548DL-05-BR now and experience reliable industrial control with high current ratings and durable LED illumination.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R13548DL05BR?
You can click on the BUY or RFQ button to purchase R13548DL05BR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R13548DL05BR?
You can download the R13548DL05BR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R13548DL05BR?
MULTICOMP PRO
