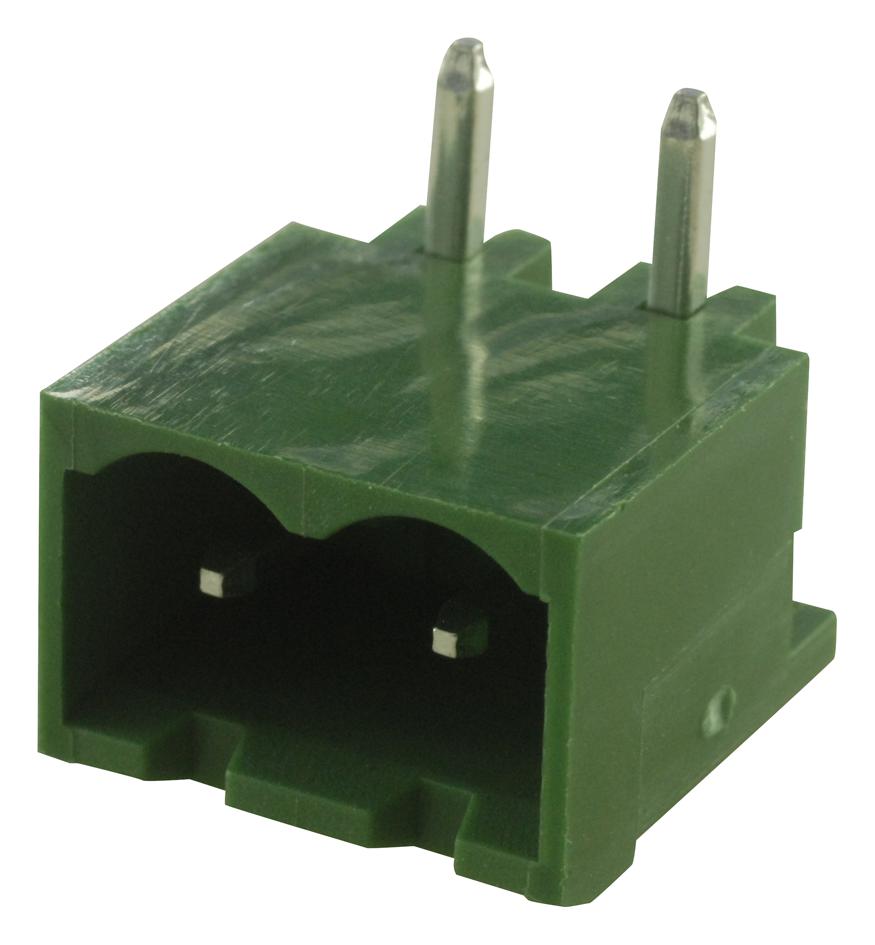

MULTICOMP PRO ME03050802 Pluggable Terminal Block
The ME030-50802 is a 2-pole pluggable terminal block header rated for 16A with through-hole, right-angle orientation, suitable for wire sizes from 14 to 24 AWG. It features tin-plated phosphor bronze contacts, a green polyamide 66 insulating body, and includes a steel cover, zinc-chromate finish screws, wire guard, and cage clamp. The terminal block offers an insulation resistance exceeding 2000 MΩ at 200V DC and operates within a temperature range of -40°C to 105°C. It is designed for industrial applications and is part of the Multicomp Pro product line, which has a high customer satisfaction rating.
MULTICOMP PRO ME03050802 Pluggable Terminal Block Specifications:
- Current Rating: 16A
- Voltage Rating: AC300V
- Insulation Withstands Voltage: AC2000V min
- Insulation Resistance: >2000 MΩ at 200V DC
- Operation Temperature: -40°C to +105°C
- Wire Range: 14AWG to 24AWG
- Wire Strip Length: 10mm
- Bolt/Torque: Steel Zicc+Cr+*, 7 lb-inch
- Material: Insulating body and cover Polyamide 66 (UL94V-0), Contact Phosphor bronze, Steel Zicc+Cr+*
- Dimensions: Width varies with number of poles, Pitch 5.08mm (0.2 inches), 2-12 poles options available
- Physical Features: Right-angle PCB mounting, cage clamp, wire guard, tin-plated contacts
- RoHS Compliant: Yes
Buy the Multicomp 50802 – Reliable Terminal Blocks for Industrial Applications
Purchase the high-performance Pluggable Terminal Block rated for 16A, featuring 5.08mm pitch, compatibility with 14-24 AWG wires, and reliable insulation resistance exceeding 2000 MΩ. Ideal for industrial control systems, automation, and wiring applications, it offers a durable polyamide body, tin-plated contacts, and robust screws. Easily installed with right-angle design, cage clamps, and wire guards, ensuring secure connections. Buy online now for dependable, high-quality terminal blocks designed for demanding environments and long-lasting performance.
Get Multicomp 50802 today—built for precision, durability, and reliable electrical connections in industrial settings.
