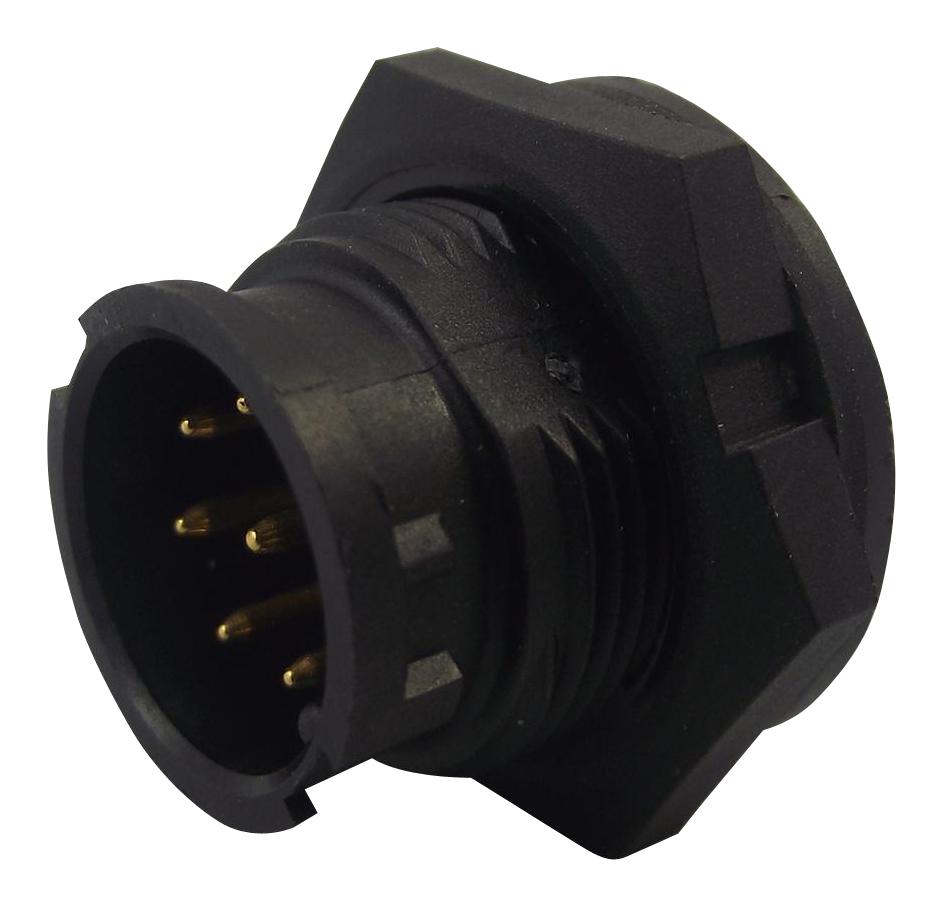

MULTICOMP PRO 2CT3002W08300 Waterproof Panel Connector
The 2CT3002-W08300 from Multicomp is an 8-way, 5A waterproof circular panel mount connector with solder termination, designed for outdoor and industrial use. It features an IP67 rated waterproof rate, capable of immersion in 1 meter of water for 30 minutes, and operates within a temperature range of -40°C to +105°C. The body is made of durable nylon with glass fiber reinforcement, and the gold-plated copper alloy pins ensure reliable conductivity. Tested for corrosion resistance and rated for 4mm panel thickness, it is ideal for harsh environments.
MULTICOMP PRO 2CT3002W08300 Waterproof Panel Connector Specifications:
- Waterproof Rate: IP67, Immersed in 1m water for 30 minutes
- Temperature Range: -40°C to +105°C
- Current Rating: 5A
- Dielectric Withstanding Voltage: 500V AC for one minute
- Material: Nylon + 33% GF, Brass, EPDM
- Body Color: Black
- Contact Material: Brass with Gold Plating over Nickel Plating
- Panel Thickness: Max 4mm
- Certifications: Hazardous Substance Free
- Mating Cycles: Up to 500
- Resistance: Contact resistance ≤ 10 milliohms, insulation resistance ≥ 100 megaohms at 500VDC
- Dimensions: Standard circular connector, diagram with recommended panel cut-out included
Buy the Multicomp 2CT3002 – Reliable Waterproof Panel Mount for Industrial Applications
Purchase the waterproof panel connector online today to ensure your industrial or outdoor project benefits from reliable, IP67 rated protection. Featuring durable nylon construction, gold-plated contacts for optimal conductivity, and a robust design rated for immersion and harsh environments, this connector is ideal for demanding applications. Its compact size, easy installation, and high resistance to corrosion and temperature variations make it the perfect choice for professionals needing dependable connectivity solutions. Order now to secure fast delivery and excellent quality for your projects.
Get Multicomp 2CT3002 today—built for outdoor resilience and long-lasting industrial performance.
