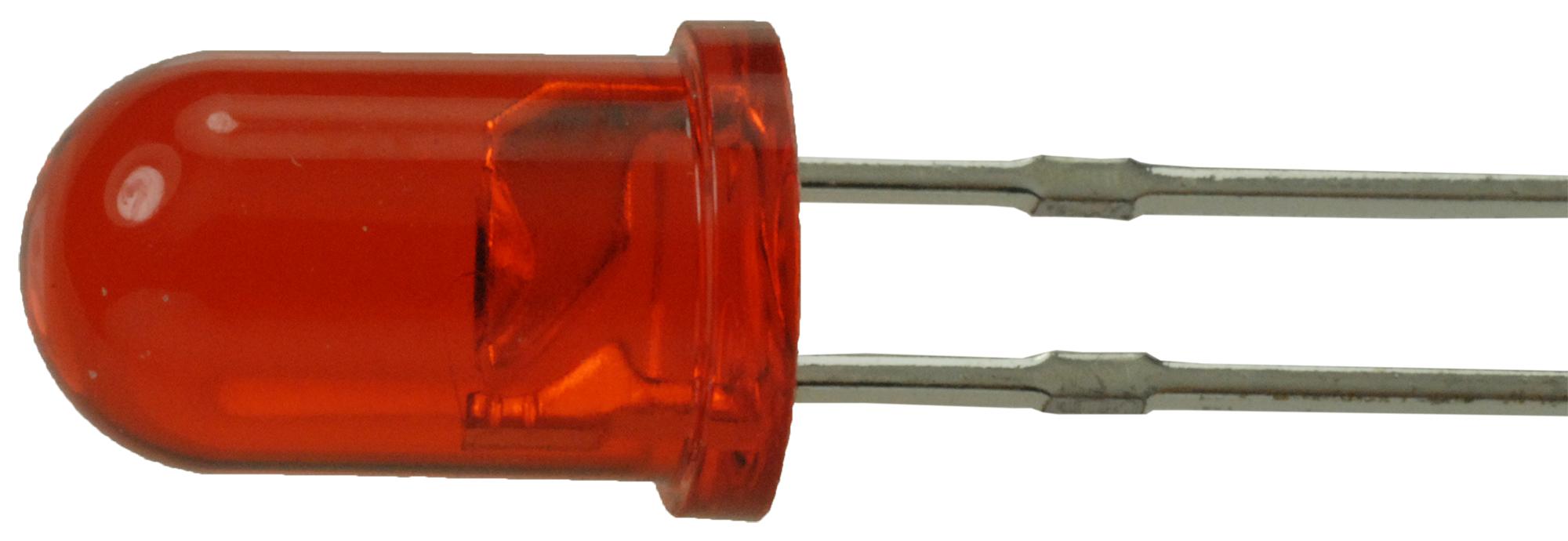

MULTICOMP PRO MCL053MT Red Through-Hole LED
The MCL053MT is a through-hole red LED with a transparent lens, designed for industrial applications. Featuring GaAsP on GaP dies, it emits at 635nm with a luminous intensity of 120mCd and a viewing angle of 216°. It operates safely within -40°C to 85°C, with a reverse voltage of 5V and a reverse current of 10μA at 5V. Certified RoHS compliant, this LED is ideal for indicator lights, display panels, and automation systems, ensuring long-lasting durability and consistent performance in various environments.
MULTICOMP PRO MCL053MT Red Through-Hole LED Specifications:
- Die material: GaAsP on GaP
- Emitted colour: Hi-eff Red
- Lens colour: Red Transparent
- Peak wavelength: 635nm
- Viewing angle: 216°
- Luminous intensity (IV): 120mCd
- Reverse Voltage: 5V
- Reverse Current: 10μA (at 5V)
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds at 4.6mm from body
- Soldering Conditions: Max soldering temp 260°C, within 5 seconds
- Forward Voltage: 1.8V to 2.6V at 20mA
- Power Dissipation: up to 85mW
- Peak Forward Current: 100mA (Duty 1/10 at 1kHz)
- Recommended Operating Current: 20mA
- Dimensions: Length 8.7mm, Diameter 5.0mm, Lead Thickness 0.2mm, Lead Spacing 2.54mm
Buy the Multicomp Red LED – Reliable Indicator for Industrial Applications
Purchase the reliable Multicomp red LED online for your industrial and automation projects. Featuring a 635nm wavelength, 120mCd luminous intensity, and 216° viewing angle, it ensures visibility and durability in various conditions. It operates within -40°C to 85°C, complies with RoHS standards, and is ideal for indicator lights, control panels, and electronic displays. Easy to install with specified soldering conditions, this LED provides long-lasting performance and high efficiency. Order now for prompt delivery and excellent quality assurance.
Get Multicomp MCL053MT today—built for precision, durability, and consistent performance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053MT?
You can click on the BUY or RFQ button to purchase MCL053MT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053MT?
You can download the MCL053MT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053MT?
MULTICOMP PRO
