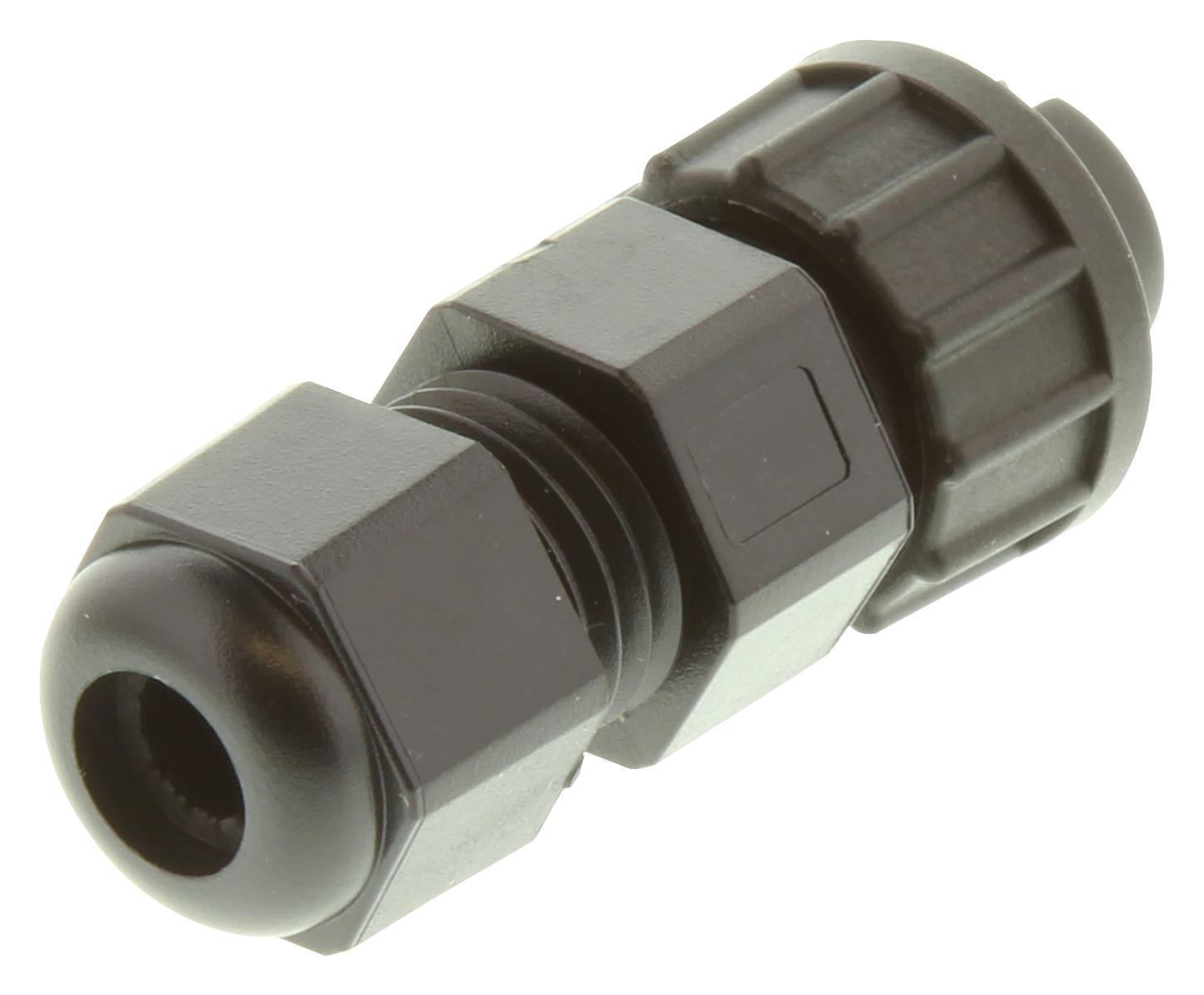

MULTICOMP-PRO 2CT3032W03400 Three-way Female Connector
The 2CT3032-W03400 from Multicomp is a three-way female connector designed for field wiring, featuring solder pin contacts. It has gold-plated copper alloy contacts and a connector body made of nylon with glass fiber reinforcement. The connector employs a lock-type mating style and is suitable for cables with an outer diameter between 4mm and 6.5mm. It supports at least 500 mating cycles, has a contact resistance of ≤30 mΩ (without cable), insulation resistance of ≥100 MΩ at DC 500V, and a breakdown voltage of ≥AC 500V for 1 minute. It withstands salt spray corrosion for 48 hours, operates within a temperature range of -40°C to +100°C, and is rated for 10A current, compatible with 20AWG to 18AWG cables. The connector offers an IP67 waterproof rating, making it suitable for industrial applications.
MULTICOMP-PRO 2CT3032W03400 Three-way Female Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30 mΩ (without cable)
- Insulation Resistance: ≥100 MΩ at DC 500V
- Durability: 500 cycles Min.
- Breakdown Voltage: ≥AC 500V for 1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (Immersed in 1m water for 30 minutes)
- Rated Current: 10A
- Compatible Cable AWG: 20AWG to 18AWG
Buy the Multicomp Series Three-way Female Connector: 2CT3032W03400
Order the Multicomp three-way female connector with solder pins today and enhance your industrial wiring projects. This connector features gold-plated copper contacts for excellent conductivity, a rugged nylon body with glass fiber reinforcement, and a lock-type mating style for secure connections. It supports cables from 20 to 18 AWG, rated at 10A. With an IP67 waterproof rating, resistance to corrosion, and durability for 500 cycles, it is ideal for demanding environments. Make your purchase online now for reliable, high-quality wiring solutions.
Buy Multicomp 2CT3032W03400 now and experience unmatched reliability and performance in industrial wiring applications with waterproof IP67 rating and high durability.
