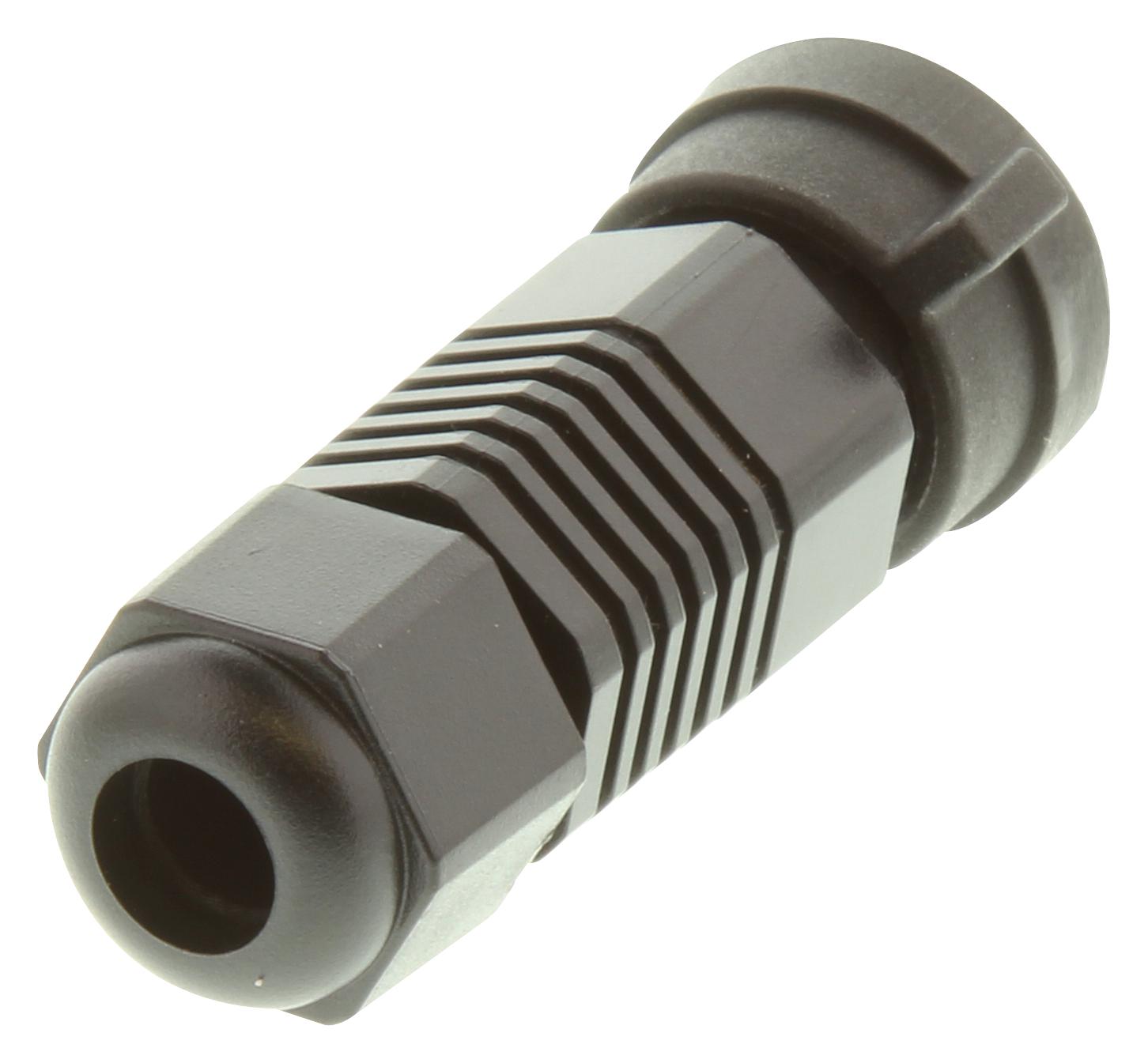

MULTICOMP PRO 2CT3032W034A0 industrial female connector
The 2CT3032-W034A0 from Multicomp is a three-way, 10A female connector designed for field wiring applications. It features solder pin termination and an IP67-rated circular in-line design with a locking mechanism for secure connection. The connector body is made from nylon and glass-filled polybutylene terephthalate, ensuring durability and resistance to harsh environments. It has a contact resistance of less than or equal to 30 milliohms, an insulation resistance of at least 100 megaohms at 500VDC, and can withstand up to 500 mating cycles. The operating temperature range is from -40°C to +100°C. Copper alloy pin contacts are gold-plated for corrosion resistance, which has been tested with a 48-hour salt spray. Suitable for wire gauges from 18AWG to 20AWG, this connector is ideal for industrial applications and is rated with a 4.6-star customer satisfaction score, backed by a 12-month limited warranty.
MULTICOMP PRO 2CT3032W034A0 industrial female connector Specifications:
- Mating Style: Locking circular connector
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF
- Contact Resistance: ≤30mΩ
- Insulation Resistance: ≥100MΩ at 500VDC
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 24 hours)
- Dimensions: Based on model; typical compact in-line design
- Wire Range: 18AWG to 20AWG
- Rated Current: 10A
Buy the Buy multicomp Field Wiring with Solder Pin Part Number 2CT3032-W034A0 Online
Purchase the multicomp female connector 2CT3032-W034A0 online today for reliable, high-quality field wiring solutions. Featuring a locking circular design, IP67 waterproof rating, and gold-plated contacts, this connector guarantees durability and corrosion resistance. Its nylon+GF construction withstands harsh environments while providing excellent electrical performance with low contact resistance. Compatible with 18AWG to 20AWG wires, it’s ideal for industrial applications requiring robust and secure connections. Backed by a 12-month warranty, buy now for dependable performance in your projects.
Order your multicomp Series 2CT3032-W034A0 female connector today and ensure a secure, waterproof connection with durable solder pin design suitable for industrial wiring.
