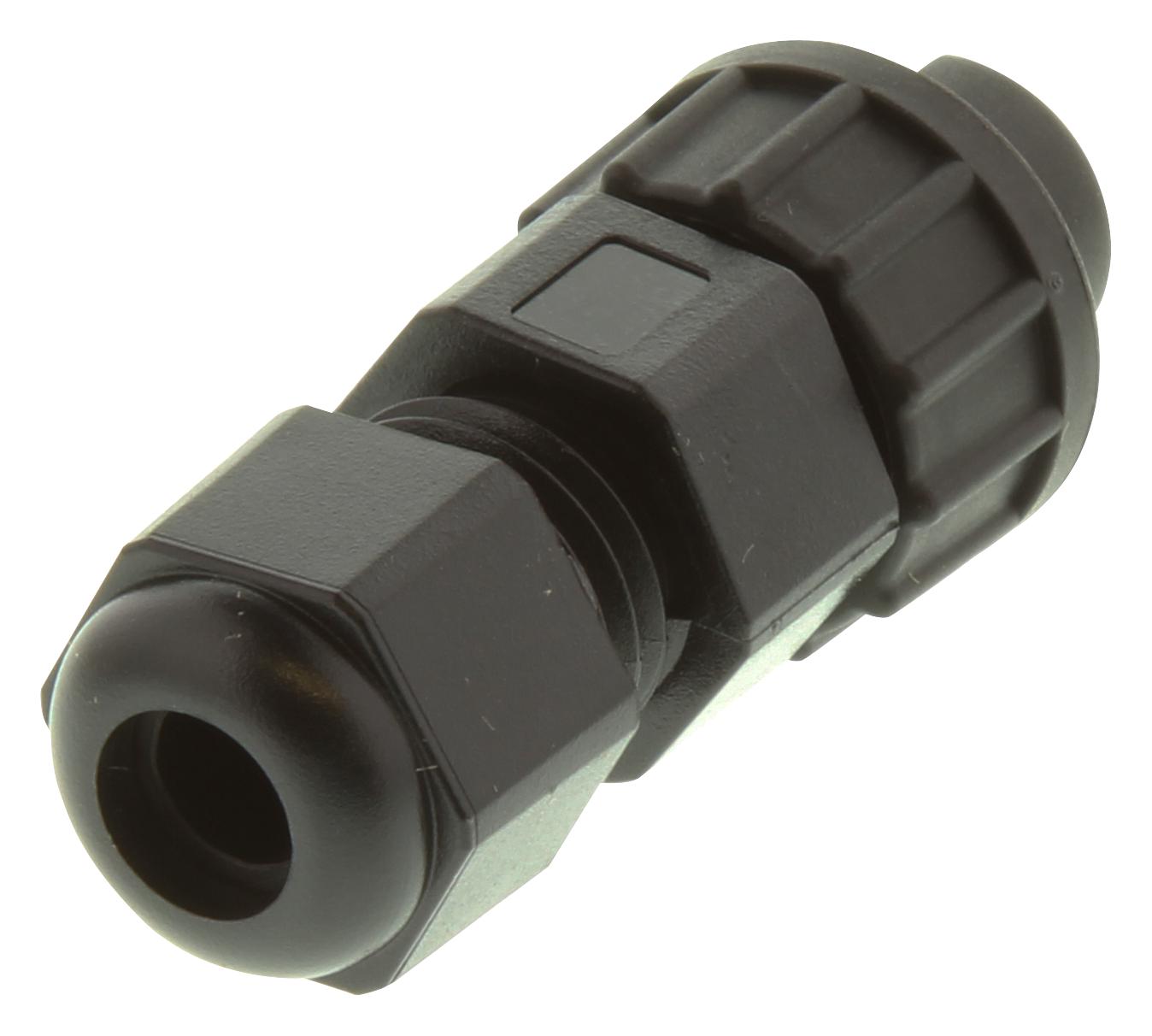

MULTICOMP PRO 2CT3032W05200 waterproof female connector
The 2CT3032-W05200 from Multicomp is a 5-way, 2A circular in-line female connector featuring solder pin termination. It is rated IP67 for water and dust resistance and uses a lock-type mating style. The connector body is made of durable nylon with glass fiber reinforcement and polybutylene terephthalate. It has a contact resistance of 30 milliohms or less, insulation resistance of at least 100 megaohms at 500VDC, and can withstand at least 500 mating cycles. The operating temperature range is from -40°C to +100°C. Copper alloy pin contacts are gold-plated for corrosion resistance. It is suitable for wire gauges from 18AWG to 20AWG with cable outer diameters between 4mm and 6.5mm. This product is rated highly by customers and comes with a 12-month limited warranty. It is ideal for industrial applications.
MULTICOMP PRO 2CT3032W05200 waterproof female connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: 30 milliohms or less
- Insulation Resistance: ≥100 MΩ at 500VDC
- Durability: 500 cycles Min.
- Breakdown Voltage: 500V for 1 minute
- Waterproof Rate: IP67 (immersed in 1m water for 30 mins)
- Temperature Range: -40°C to +100°C
Buy the Multicomp Series Female Connector: 2CT3032W05200
Purchase the Multicomp waterproof female connector online today and benefit from quick delivery and competitive pricing. This 5-way, 2A connector features a lock-type mating style, gold-plated copper contacts for lasting corrosion resistance, and a durable nylon+GF and PBT body. Rated IP67, it withstands water immersion and dust, making it ideal for harsh environments. Suitable for 18 to 20 AWG wires with cable diameters between 4mm and 6.5mm, this connector offers excellent electrical performance with low contact resistance and high insulation resistance. Ensure your industrial applications are reliable by buying online now.
Order your Multicomp Series 2CT3032W05200 waterproof female connector today and ensure reliable, corrosion-resistant connections for industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3032W05200?
You can click on the BUY or RFQ button to purchase 2CT3032W05200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3032W05200?
You can download the 2CT3032W05200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3032W05200?
MULTICOMP PRO
