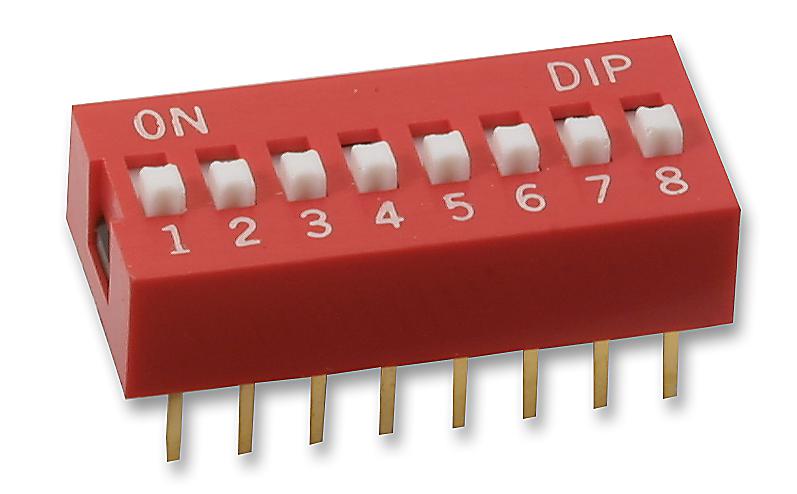

MULTICOMP PRO MCNDS08V Slide Switch
This slide-type DIP switch series offers reliable performance for industrial control, computer peripherals, and various function controls. Made with high-quality thermoplastic and metal components, it features a robust design with a 2mm travel, operating temperature from -40°C to +85°C, and a lifecycle of 2000 cycles. Suitable for PCB mounting, it withstands soldering temperatures up to 350°C for 5 seconds, making it ideal for demanding environments. The switches have gold-plated contacts and brass terminals ensuring excellent electrical conductivity and durability.
MULTICOMP PRO MCNDS08V Slide Switch Specifications:
- Actuator: Thermoplastic PBT UL 94V-0 — White
- Cover: Thermoplastic PBT UL 94V-0 — Red
- Contact Material: Copper Alloy, Gold Plated
- Terminal Material: Brass, Gold Plated
- Base Material: Thermoplastic PA66 UL 94V-0 - Black
- Current Rating: Non-Switching 50V DC 100mA; Switching 24V DC 25mA
- Resistance: 50mΩ max. (contact), 100MΩ min. (insulation)
- Dielectric Strength: 500V AC/1 min
- Operating Force: 1000gf max.
- Travel: 2mm
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Soldering Temperature: Max 350°C for 5 seconds
- Dimensions (example for MCNDS-08V): 21.68mm x 17.78mm
- Vibration Resistance: Method 201A MIL-STD-202F, 10-55-10 Hz, 2 hours per direction
- Shock Resistance: Method 213B MIL-STD-202F, 50G, 11ms, 6 sides
- RoHS Compliant
Buy the Multicomp Series Slide Switch: MCNDS-08V
Enhance your electronic projects with our reliable slide switch series, featuring robust construction, gold-plated contacts, and a lifespan of 2000 cycles. Designed for PCB mounting, these switches operate efficiently from -40°C to +85°C, ensuring durability in demanding environments. Easy to solder at temperatures up to 350°C and resistant to vibration and shocks, they’re ideal for automation, control panels, and computer peripherals. Order online today for quick delivery and dependable performance in your next application.
Buy Multicomp MCNDS-08V now and experience unmatched reliability and performance with durable contact quality and temperature resilience.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDS08V?
You can click on the BUY or RFQ button to purchase MCNDS08V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDS08V?
You can download the MCNDS08V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDS08V?
MULTICOMP PRO
