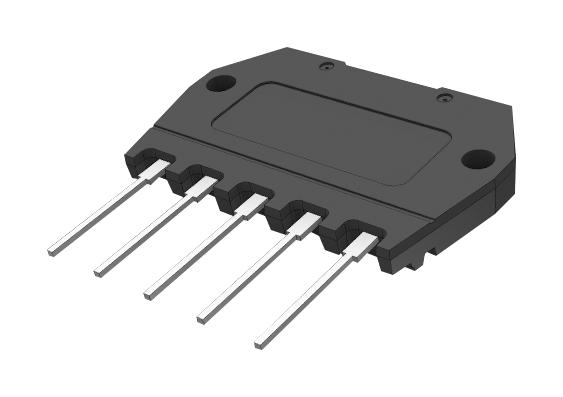

MULTICOMP PRO HGBJ5012 Three-Phase Bridge Rectifier
The HGBJ5012 is a glass passivated three-phase bridge rectifier designed for high reliability and efficiency in power supply applications such as DC equipment and PWM converters. It features a compact, lightweight design with low thermal resistance, high thermal conductivity, and an insulation voltage of 2,500V. Capable of handling up to 1,200V peak repetitive voltage and 50A average forward current, it is suitable for industrial power rectification. The rectifier boasts low forward voltage drop, high surge current capacity, and excellent thermal performance, ensuring durable operation in demanding environments.
MULTICOMP PRO HGBJ5012 Three-Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1200 V
- Peak Non-Repetitive Reverse Voltage VrsM: 1300 V
- Maximum Average Forward Rectified Current: 50 A
- Peak Forward Surge Current: 450 A
- Maximum Forward Voltage Drop: 17.5 V
- Reverse Peak Current Vrm at 25°C: 5 pA
- Reverse Peak Current Vrm at 150°C: 3 mA
- Insulation Voltage from Case to Lead: 2,500 V
- Thermal Resistance Junction to Case: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Mounting Torque (M3): 0.8 N·m
- Weight: 10 g
Buy the Buy Multicomp Pro HGBJ5012 Part Number HGBJ5012 Online
Purchase the Multicomp Pro HGBJ5012 three-phase bridge rectifier online for high-quality power conversion solutions. This rectifier provides 1200V peak voltage and 50A current capacity, making it ideal for industrial power supply, PWM converters, and DC motor control applications. Its glass passivated chip design ensures high reliability, low forward voltage drop, and excellent thermal performance. Lightweight and compact, it simplifies integration into complex systems, delivering durable and efficient power rectification with a thermal resistance of 0.8 °C/W, suitable for demanding industrial environments.
Get Multicomp Pro HGBJ5012 today—designed for high reliability in industrial power rectification and robust switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ5012?
You can click on the BUY or RFQ button to purchase HGBJ5012 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ5012?
You can download the HGBJ5012 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ5012?
MULTICOMP PRO
