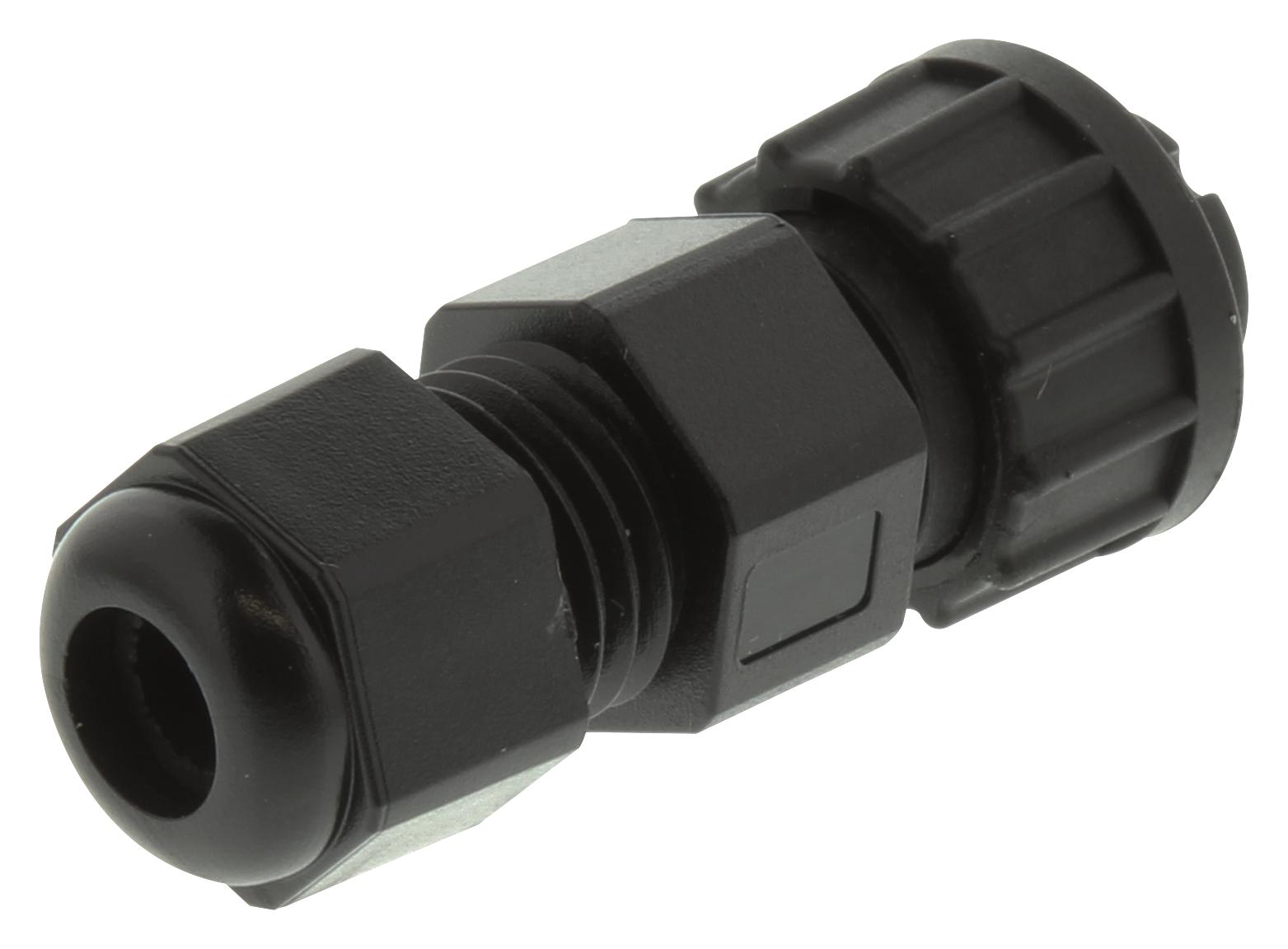

MULTICOMP-PRO 2CT3032W12200 Industrial Circular Connector
The 2CT3032-W12200 from Multicomp is a 12-way, 2A field wiring female connector featuring solder pin termination. It is an IP67-rated circular in-line connector with a locking mating style, making it suitable for rugged industrial environments. The connector body is made from nylon with glass reinforcement and polybutylene terephthalate, providing durability and chemical resistance. It exhibits a contact resistance of 30 milliohms or less and an insulation resistance exceeding 100 Megaohms at 500VDC. It supports wire gauges from 24 AWG to 26 AWG and accommodates cable diameters of 4mm to 6.5mm, rated for 500 mating cycles. Operating from -40°C to +100°C, copper alloy gold-plated pins ensure reliable connections, resistant to corrosion after 48 hours salt spray. This industrial connector guarantees secure, long-lasting performance in demanding applications.
MULTICOMP-PRO 2CT3032W12200 Industrial Circular Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: 30mΩ (without cable)
- Insulation Resistance: 100 MΩ at 500VDC
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
- Wire Gauge: 24-26 AWG
- Number of Ways: 12
- Rated Current: 2A
- Operating Voltage: 500V
Buy the Multicomp Series Field Wiring Female Connector: 2CT3032-W12200
Order the Multicomp 12-way field wiring female connector with solder pin terminals today and experience dependable, durable connections ideal for demanding industrial applications. Designed with IP67 waterproof rating and a rugged construction, this connector supports wire gauges from 24 to 26 AWG and can withstand harsh environments, including salt spray corrosion. Operating temperature ranges from -40°C to +100°C, ensuring performance in extreme conditions. Its fast, reliable locking mechanism guarantees secure connections, making it the preferred choice for industrial and automation systems. Purchase online for fast delivery and comprehensive customer support.
Get Multicomp 2CT3032-W12200 today—built for rugged industrial environments with high durability and reliable contacts.
