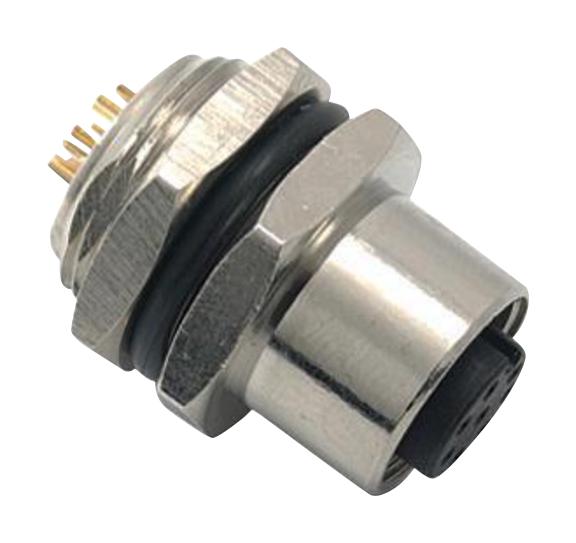

MULTICOMP PRO 2MT3002W03300 Waterproof Industrial Connector
The M12 Series front mount female connectors are waterproof, designed for reliable industrial connections in harsh environments. Featuring IP68-rated sealing, these connectors can be immersed in 1 meter of water for 24 hours, making them ideal for outdoor and automation applications. They operate from -40°C to +100°C, with a current rating of 60V AC/DC and dielectric withstanding voltage of 500V AC for one minute. Constructed with durable nylon bodies and nickel-plated metal parts, they ensure longevity and corrosion resistance in demanding environments.
MULTICOMP PRO 2MT3002W03300 Waterproof Industrial Connector Specifications:
- Waterproof rating: IP68, immersible in 1m water for 24 hours
- Material: Nylon + 33% GF body, nickel-plated Brass and Phosphor Bronze pins
- O-Rings: Viton (red), EPDM (black)
- Operating temperature: -40°C to +100°C
- Voltage Rating: 60V AC/DC
- Dielectric Withstanding Voltage: 500V AC for one minute
- Panel Thickness: 4mm Max
- Recommended Panel Cut-Out: Millimetres, Section AA
- Pin arrangements: 3, 4, 5, 8 positions available
- Dimensions: G15.2, 13.6 mm, with Hexagon 18 mm
- Liquid glue included for sealing and waterproofing
Buy the Multicomp Series M12 Waterproof Connector: 2MT3002W03300
Explore the high-quality waterproof industrial connector designed for rugged automation applications. With IP68 rating, durable nylon and nickel-plated components, and temperature resilience from -40°C to +100°C, this connector ensures reliable connections even in challenging conditions. Its compact design fits standard panel cut-outs, and the included liquid glue provides added waterproofing protection. Perfect for automation, manufacturing, and outdoor installations, it’s a reliable, durable, and easy-to-install connection solution that guarantees steady performance in demanding environments.
Buy Multicomp M12 waterproof connector 2MT3002W03300 now and experience unmatched reliability and performance in harsh industrial environments.
