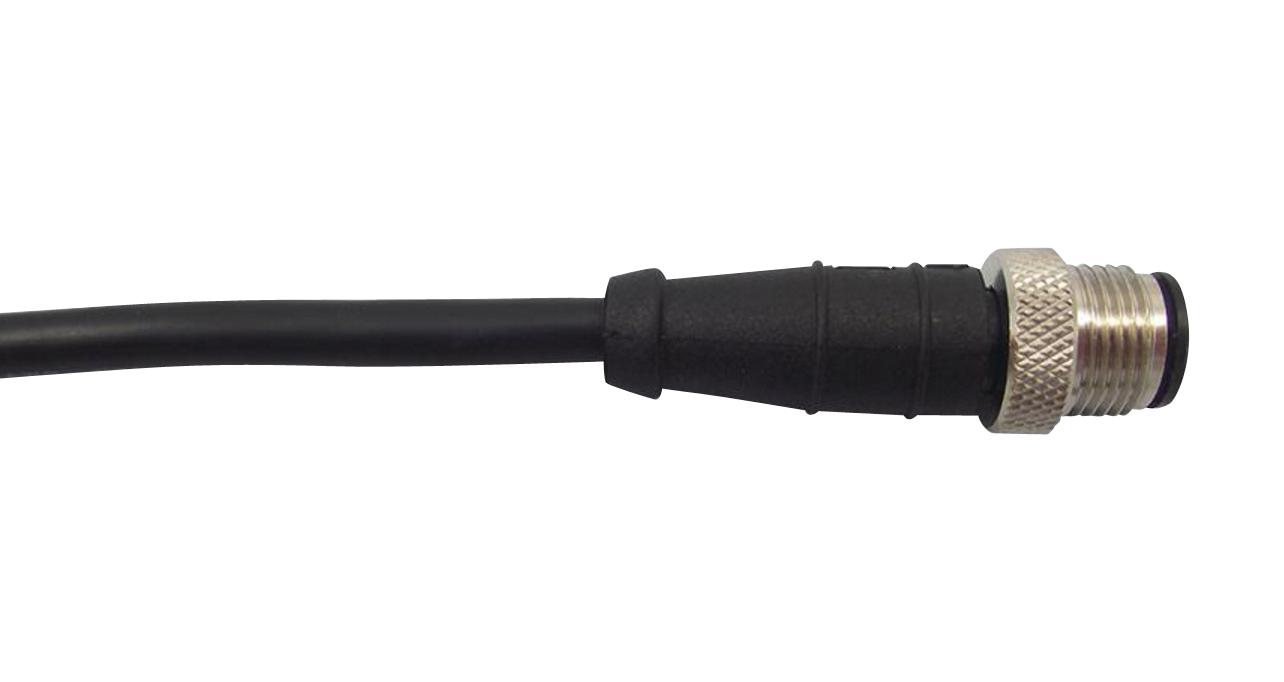

MULTICOMP PRO 2MT3012W08200 8-way circular cable assembly
The 2MT3012-W08200 is an 8-way circular cable assembly featuring a plug-free design, constructed with 24 AWG, 8 conductors plus additional lines, and a UV-resistant outer diameter of approximately 5.4 mm. It has a PVC jacket and is rated for 2A and 60VAC/DC. The cable assembly includes a TPU body with TPU over-molding, offering IP67 waterproof protection. It is suitable for demanding environments and complies with industry standards, ensuring durability and reliability.
MULTICOMP PRO 2MT3012W08200 8-way circular cable assembly Specifications:
- Current Rating: 2A
- Voltage Rating: 60VAC/DC
- Number of Conductors: 8
- Wire Gauge: 24 AWG
- Outer Diameter: approximately 5.4 mm
- Jacket Material: PVC
- Body Material: TPU
- Protection Class: IP67 waterproof
- Temperature Range: -25°C to +90°C
- Conductors: Copper Alloy, Gold Plated
- Durability: Minimum 500 cycles
- Breakdown Voltage: 2A, 60VAC/DC
- Insulation Resistance: 2100MQ at DC 500V
- Corrosion Resistance: Salt spray 48 hours
Buy the Innovative Series Cable Assembly: 2MT3012W08200
Enhance your industrial connectivity with the 2MT3012W08200 8-way cable assembly. Featuring a plug-free design, UV-resistant outer jacket, and waterproof IP67 rating, it delivers exceptional durability and reliability. Its construction with 24 AWG copper conductors and TPU over-molding ensures long-lasting performance even in harsh environments. Rated for 2A current and 60VAC/DC voltage, this assembly is ideal for demanding applications. Order online now to ensure your project benefits from high-quality, industrial-grade wiring solutions that meet industry standards.
Buy 2MT3012W08200 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2MT3012W08200?
You can click on the BUY or RFQ button to purchase 2MT3012W08200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MT3012W08200?
You can download the 2MT3012W08200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2MT3012W08200?
MULTICOMP PRO
