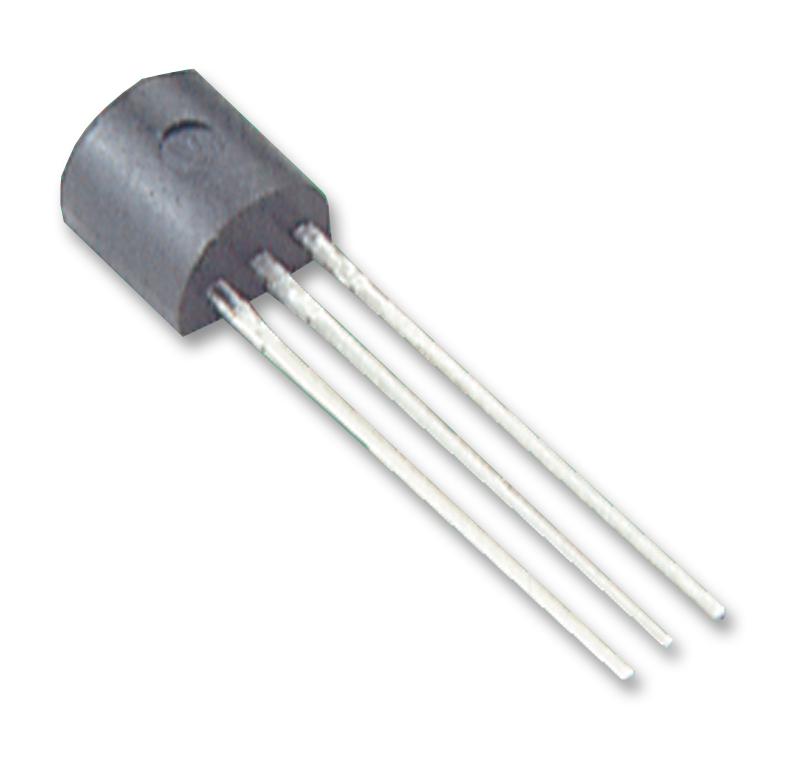

MULTICOMP PRO 2N4403 PNP Switching Transistor
The MULTICOMP PRO 2N4403 is a PNP silicon planar epitaxial transistor packaged in a TO-92 format. It's engineered for general-purpose switching applications, offering a combination of voltage and current handling capabilities. This transistor is commonly used in amplifier circuits, switching circuits, and various other electronic applications where a PNP transistor is required. Its robust design and reliable performance make it a suitable choice for a wide range of industrial and consumer electronics.
MULTICOMP PRO 2N4403 PNP Switching Transistor Specifications:
- Collector Emitter Voltage: 40 V
- Emitter Base Voltage: >5 V
- Collector Current Continuous: 600 mA
- Power Dissipation at Ta= 25°C: 625 mW
- Power Dissipation at TC= 25°C: 1.5 W
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Junction to Case Thermal Resistance: 83.3 °C/W
- Junction to Ambient Thermal Resistance: 200 °C/W
- Collector Emitter Voltage (Pulse): >40 V
- Collector Base Voltage: N/A
- Base Cut off Current: <0.1 µA
- Collector Cut off Current: N/A
- Collector Emitter Saturation Voltage: <0.4 V (at 150mA), <0.75 V (at 500mA)
- Base Emitter Saturation Voltage: 0.75 - 0.95 V (at 150mA), 1.3 V (at 500mA)
- DC Current Gain (hFE): >30 (at 0.1mA), >60 (at 1mA), >100 (at 10mA), 100 - 300 (at 150mA), >20 (at 500mA)
- Small Signal Current Gain (hfe): 60 - 500
- Input Impedance (hie): 1.5 - 15 kΩ
- Voltage Feedback Ratio (hre): 0.1 - 8 ×10-4
- Output Impedance (hoe): 1 - 100 µΩ
- Collector-Base Capacitance (Ccb): <8.5 pF
- Emitter-Base Capacitance (Ceb): <30 pF
- Transition Frequency (fT): >200 MHz
- Delay Time (td): <15 ns
- Rise Time (tr): <20 ns
- Storage Time (ts): <225 ns
- Fall Time (tf): <30 ns
