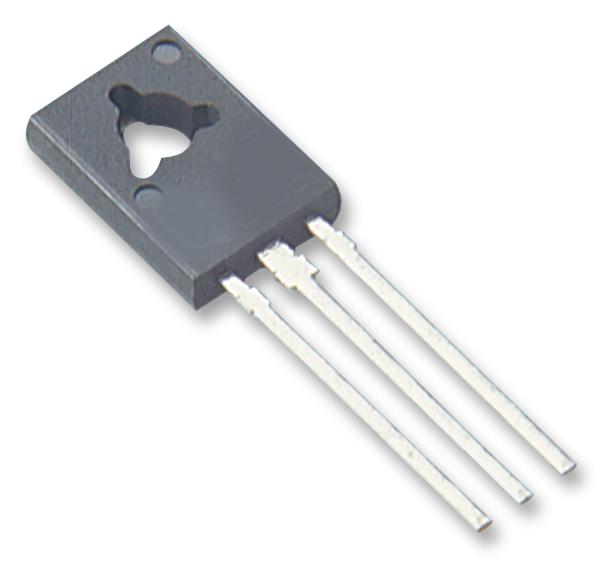

MULTICOMP PRO 2N5195 PNP Power Transistor
The MULTICOMP PRO 2N5195 is a silicon PNP power transistor packaged in a TO-126 format. Designed for robust performance in power amplifier and switching circuits, it offers a continuous collector current of 4A and a total device dissipation of 40W. Its key characteristics include a collector-emitter breakdown voltage of 80V and a DC current gain (hfe) ranging from 7 to 80, depending on the collector current. The transistor's safe operating area limits make it suitable for demanding industrial applications where reliability and efficiency are paramount. It is commonly used in power supplies, motor drives, and other applications requiring high-power switching.
MULTICOMP PRO 2N5195 PNP Power Transistor Specifications:
- Absolute Maximum Ratings - Collector - Base Voltage: 80V
- Absolute Maximum Ratings - Collector - Emitter Voltage: 80V
- Absolute Maximum Ratings - Emitter - Base Voltage: 5V
- Absolute Maximum Ratings - Continuous Collector Current: 4A
- Absolute Maximum Ratings - Base Current: 1A
- Absolute Maximum Ratings - Total Device Dissipation: 40W
- Absolute Maximum Ratings - Device Dissipation Derating: 320mW/°C
- Absolute Maximum Ratings - Operating Junction Temperature Range: -65°C to +150°C
- Absolute Maximum Ratings - Storage Temperature Range: -65°C to +150°C
- Electrical Characteristics - Collector - Emitter Breakdown Voltage: 80V
- Electrical Characteristics - Collector Cut-off Current: 0.1mA
- Electrical Characteristics - Emitter Cut-off Current: 1mA
- Electrical Characteristics - DC Current Gain (hfe): 20-80
- Electrical Characteristics - Collector - Emitter Saturation Voltage: 0.6-1.4V
- Electrical Characteristics - Base - Emitter On Voltage: 1.2V
- Electrical Characteristics - Current Gain - Bandwidth Product: 2MHz
- Package: TO-126
- Dimensions A: 10.8-11.05mm
- Dimensions B: 7.49-7.75mm
- Dimensions C: 2.41-2.67mm
- Dimensions D: 0.51-0.66mm
- Dimensions F: 2.92-3.18mm
- Dimensions G: 2.31-2.46mm
- Dimensions H: 1.27-2.41mm
- Dimensions J: 0.38-0.64mm
- Dimensions K: 15.11-16.64mm
- Dimensions M: 3° TYP
- Dimensions Q: 3.76-4.01mm
- Dimensions R: 1.14-1.4mm
- Dimensions S: 0.64-0.89mm
- Dimensions U: 3.68-3.94mm
- Dimensions V: 1.02mm
