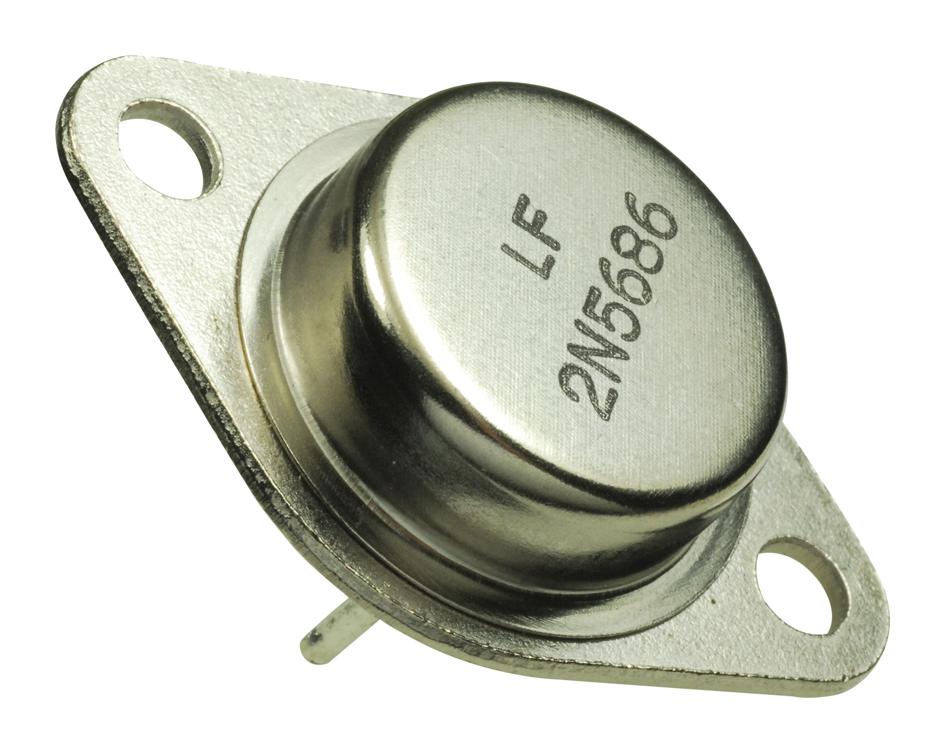

MULTICOMP PRO 2N5686 High Power Power Transistor
The 2N5686 is a high-power silicon PNP transistor suitable for industrial, switching, and amplifier applications. Designed for high current operations, it features a collector-emitter saturation voltage of 1V at 25A and a collector current capability of 50A. Its robust construction allows operation up to 200°C junction temperature. The device includes thermal stability and a maximum collector-base voltage of 80V, making it ideal for power supply and advanced electronic systems that demand reliable switching performance and high thermal dissipation. Suitable for power-intensive applications requiring durability and efficiency.
MULTICOMP PRO 2N5686 High Power Power Transistor Specifications:
- Collector-Base Voltage: 80V
- Collector-Emitter Voltage: 80V
- Continuous Collector Current: 50A
- Base Current: 15A
- Total Dissipation: 300W at +25°C
- Operating Junction Temperature Range: -65°C to +200°C
- Storage Temperature Range: -65°C to +200°C
- Collector-Emitter Saturation Voltage: 1V at 25A
- DC Current Gain hfe: 15-60
- Package: TO-3
- Dimensions: Millimetres, specific dimensions provided in datasheet
- Maximum Power Dissipation: 300W at room temperature
- Thermal Derating: 1.715mW/°C above 25°C
- Electrical characteristics tested at Ts=25°C, pulse test conditions applied for gain-bandwidth
- Type: NPN silicon power transistor
- Designed for high-power switching and amplifier circuits
- RoHS compliant
Buy the Multicomp High Power Transistor 2N5686 – Reliable Power Switching for Industrial Applications
Purchase the multicomp 2N5686 high-power transistor online today to ensure reliable performance in high-power amplifier and switching circuits. This robust NPN silicon device offers high current capability and low saturation voltage, making it ideal for industrial, power supply, and computer hardware applications. With a maximum collector current of 50A and operating temperature up to 200°C, it delivers efficient switching and power handling. Order now for long-lasting durability and seamless integration into your electronic projects, backed by a 12-month limited warranty for complete peace of mind.
Get multicomp 2N5686 today—built for high power switching and durable industrial performance in demanding electronic systems.
