MULTICOMP PRO MC23554 SMA Connector
The MC23554 is a straight SMA plug connector designed for RF communication, featuring PTFE insulation and a durable brass body. It operates from DC to 6 GHz, with a standard impedance of 50Ω, ensuring reliable signal integrity. Rated for a maximum working voltage of 335V and proof voltage of 750V, it includes a brass center contact and a brass crimp ferrule for secure connections. Suitable for various RF systems, this connector supports crimping with recommended torque of 3 to 5 in-lbs and is RoHS compliant, making it ideal for professional networking and broadcasting equipment.
MULTICOMP PRO MC23554 SMA Connector Specifications:
- Frequency Range: DC to 6 GHz
- Nominal Impedance: 50Ω
- Working Voltage: 335 V
- Proof Voltage: 750 V
- Center Contact Material: Brass
- Body Material: Brass
- Insulation Material: PTFE
- Crimp Ferrule Material: Brass
- Maximum Crimp Size: 3.5 mm (0.138 inches)
- Recommended Coupling Torque: 3 to 5 in-lbs
- Operating Temperature Range: -65°C to +165°C
- RoHS Compliance: Yes

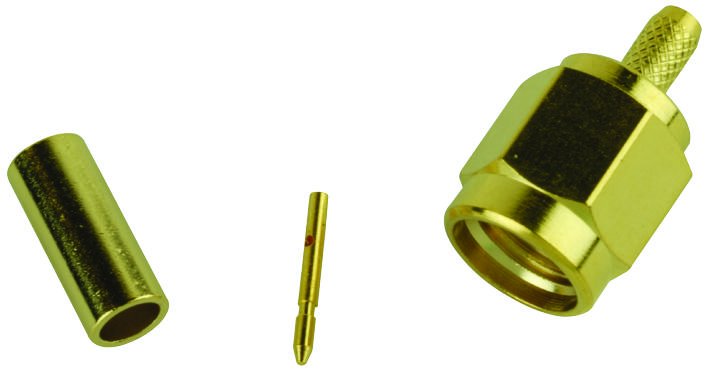

Buy the Buy Multicomp SMA Straight Plug Part Number MC23554 Online
Enhance your RF systems with the reliable Multicomp SMA straight plug connector, featuring PTFE insulation and brass construction for durability and performance. Suitable for frequencies up to 6 GHz, it offers a 50Ω impedance, maximum working voltage of 335V, and RoHS compliance. Its precise crimping and secure connections are ideal for professional applications in communication, broadcasting, and networking industries. Purchase online today to ensure your projects have top-quality components that deliver exceptional signal integrity and durability.
Order your Multicomp SeriesMC23554 SMA Straight Plug today and ensure reliable RF connections for your communication projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC23554?
You can click on the BUY or RFQ button to purchase MC23554 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC23554?
You can download the MC23554 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC23554?
MULTICOMP PRO
