MULTICOMP PRO 2N6059 Power Transistor
The 2N6059 is a 100V silicon NPN epitaxial base transistor configured as a monolithic Darlington. It is suitable for power linear and low-frequency switching applications, featuring high current gain, high current handling capabilities, and a power dissipation of 150W. The device includes an integrated anti-parallel diode, making it reliable for industrial and electronic control applications. Compact and efficient, this transistor supports a broad temperature range, ensuring stable operation in demanding environments and providing dependable performance in industrial automation and power management systems.
MULTICOMP PRO 2N6059 Power Transistor Specifications:
- Collector-Emitter Voltage Vceo: 80V (2N6058), 100V (2N6059)
- Collector Current Ic: 12A
- Power Dissipation: 150 Watts
- Operating Junction Temperature Range: -65°C to +200°C
- Thermal Resistance, Junction to Case: 1.17°C/W
- Maximum Collector-Base Voltage Ves: 80V (2N6058), 100V (2N6059)
- Emitter-Base Voltage Ves: 5V
- Collector-Emitter Saturation Voltage Vce(sat): value varies based on Ic
- Base-Emitter Voltage Vbe: typically around 0.7V at Ic=12A
- Package Type: TO-3
- Dimensions: Length approximately 39.37mm, Width approximately 22.22mm, with specific pin spacing and terminal sizes
- High DC Current Gain (hFE): typically 750 at Ic=6A
- Isolation and Packaging: RoHS compliant, suitable for industrial use

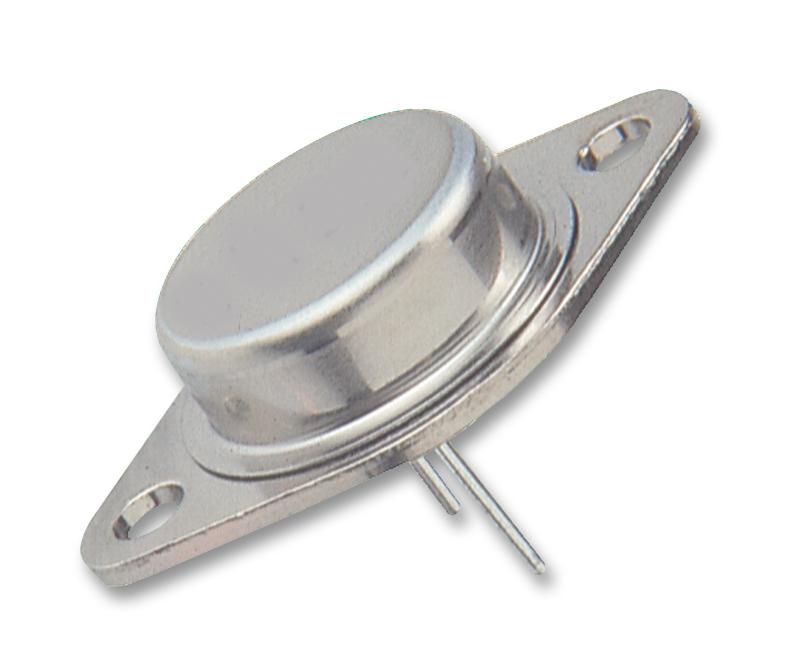

Buy the Multicomp Series 2N6059 Power Transistor: 100V NPN TO-3
Enhance your electronic projects with the reliable Multicomp Series 2N6059 power transistor, rated for 100V, 12A, and 150W. Designed for power linear and low-frequency switching tasks, this TO-3 package device offers high current gain, excellent thermal performance, and robust industrial-grade specifications. Its integrated diode ensures efficient operation in demanding environments, making it ideal for industrial automation, power supplies, and control systems. Purchase online today and ensure your projects benefit from top-quality, durable components designed for maximum performance and reliability.
Order your Multicomp Series 2N6059 power transistor today and enhance your power management and switching applications with reliable, high-performance transistors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N6059?
You can click on the BUY or RFQ button to purchase 2N6059 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N6059?
You can download the 2N6059 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N6059?
MULTICOMP PRO
